Slimdrive SLV Automatic sliding door system for use on angled façades or corners
- The product is designed and manufactured specifically for each project
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- Angle in the drive rail 90° to 270°.
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated battery for emergency opening and closing in the event of a power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
- Various mechanical and electrical locks are optionally available
Application Areas
- Double leaf sliding door systems
- For use on angled façades or corners
- Interior and exterior doors with high access frequency
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Opening widths of 900 to 2500 mm possible
- Door leaf weight of up to 120 kg per leaf
- Suitable profile systems are fine-framed profile systems with ISO and mono glass
- Suitable for various profile systems
Installation situations in reference objects and videos
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.
Slimdrive SLV

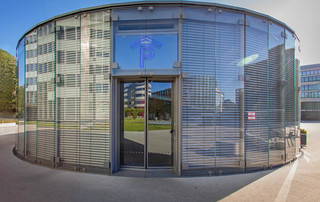

The proven sliding door drive from GEZE ensures standard-compliant protection and a night-time closer, even on angled façade constructions. © Jürgen Biniasch / GEZE GmbH
Slimdrive SLV

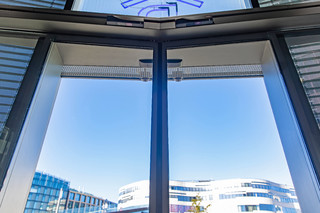

The proven sliding door drive from GEZE ensures standard-compliant protection and a night-time closer, even on angled façade constructions. © Jürgen Biniasch / GEZE GmbH
Slimdrive SLV

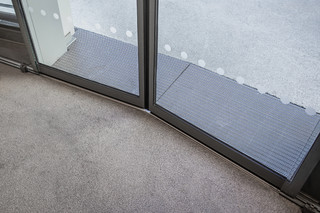

The proven sliding door drive from GEZE ensures standard-compliant protection and a night-time closer, even on angled façade constructions. © Jürgen Biniasch / GEZE GmbH
Slimdrive SLV

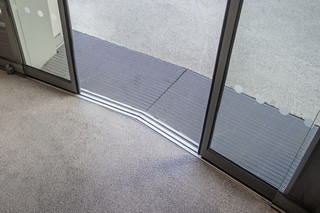

The proven sliding door drive from GEZE ensures standard-compliant protection and a night-time closer, even on angled façade constructions. © Jürgen Biniasch / GEZE GmbH
Slimdrive SLV

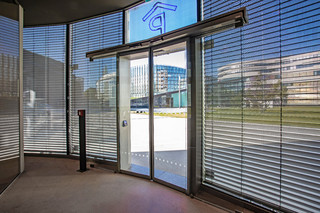

The proven sliding door drive from GEZE ensures standard-compliant protection and a night-time closer, even on angled façade constructions. © Jürgen Biniasch / GEZE GmbH

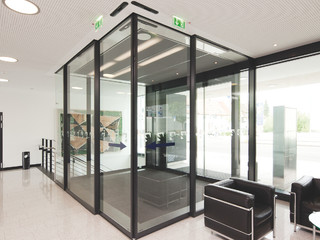

Automatic sliding door drive Slimdrive SLV (corner sliding door) at the office building of Häussler Global Office GmbH, Stuttgart
Very smooth low-wear automatic linear sliding door system with low height and clear design line for optimum ease of access. © Dirk Wilhelmy / GEZE GmbH

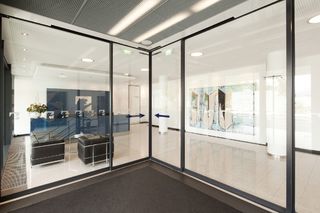

Automatic sliding door drive Slimdrive SLV (corner sliding door) at Stachus Passages in Munich
Very smooth low-wear automatic linear sliding door system with low height and clear design line for optimum ease of access. © Robert Sprang / GEZE GmbH
Automatic sliding door drive Slimdrive SLV (corner sliding door) at Hotel Parador National del Saler in Valencia
Very smooth low-wear automatic linear sliding door system with low height and clear design line for optimum ease of access. © Pau Esculies / GEZE GmbH
Technical data
| Slimdrive SLV | |
| For 2-leaf door systems | Yes |
| Height | 70 mm |
| Depth | 190 mm |
| Leaf weight (max.) 2-leaf | 120 kg |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Disconnection from mains | Main switch in the drive |
| Standard conformity | DIN 18650. DIN EN ISO 13849: Performance Level D. EN 16005 |
