Sensor switch

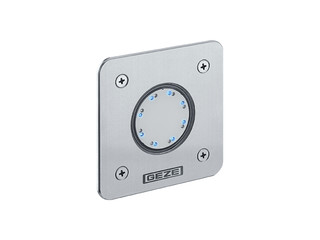

LED sensor foot switch Switch for activating automatic doors
- Touch-sensitive capacitive push button with blue/red LED illumination
- Long service life - more than 100 million hystereses
- Continuously illuminated blue (can be switched off), illuminated red when touched
- Very high IP rating of 69K
- Impact and vandalism-proof by protection degree IK08
Application Areas
- For convenient activation of automatic doors from the floor
- Preferred for use in restaurants or hotel areas
Technical data
| LED sensor foot switch | |
| Dimensions | 100 x 100 x 17 mm |
| Current consumption | 30 mA |
| Output | PNP transistor output |
| IP rating | IP69K |
| Type of installation | Floor |
| Connection type | Cable prepared for connection to screw terminal |
| Connector cable length | 2000 mm |
| Material | Stainless steel |
| Service temperature | -30 - 80 °C |
Downloads
LED sensor foot switch
LABELLING OBLIGATION: © GEZE GmbH

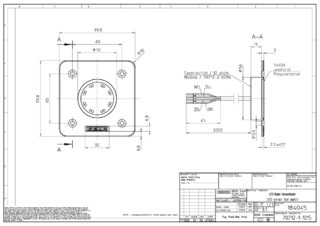

LED sensor foot switch with base assembly
LABELLING OBLIGATION: © GEZE GmbH
