Push button
EFT elbow switch Stainless steel elbow switch with IP65 IP rating for activating automatic doors
- IP rating IP65
- Stainless steel - V2A
- Flat design with a height of 250 mm
- Large push switch for activation even with elbows
Application Areas
- Activation of automatic swing, sliding, folding, revolving and curved sliding doors
- Interior and exterior applications
- Surface-mounted installation
Installation situations in reference objects and videos
Stainless steel elbow switch

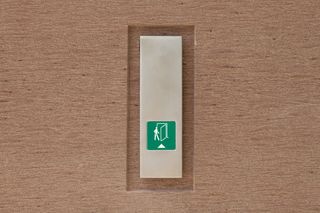

Elbow switch made of stainless steel and IP rating IP65 for the activation of automatic doors, installed in the house of the Catholic Church, Stuttgart. © Dirk Wilhelmy / GEZE GmbH
Technical data
| EFT elbow switch | |
| Dimensions | 75 x 250 x 17 mm |
| Switching voltage | 230 V |
| Switching current | 1 A |
| IP rating | IP65 |
| Type of installation | Surface-mounted |
| Material | Stainless steel |
Downloads
Elbow switch Stainless steel
LABELLING OBLIGATION:
© GEZE GmbH
Stainless steel elbow switch
LABELLING OBLIGATION:
© Dirk Wilhelmy / GEZE GmbH
