Accessories

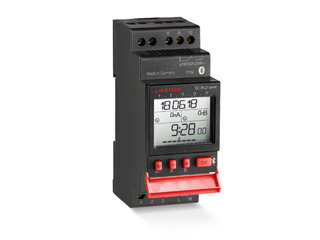

Digital programmable timer For time-controlled changes of modes of operation on automatic doors
- Integrated daily and weekly planner
- Two signal activations are possible via two channels
- Text-based menu guidance and symbols via a matrix display
- Programmable with a smart device via the integrated Bluetooth interface
- Exchangeable battery CR2032 3V with 10 years power reserve
Application Areas
- For time-controlled changes of modes of operation on automatic doors
- For installation on top-hat rails
Technical data
| Digital programmable timer | |
| Dimensions | 35 x 90 x 58 mm |
| Switching voltage | 24 V DC |
| Switching current | 16 A |
| Switching capacity max. | 1 W |
| Output | Potential-free relay contact |
| IP rating | IP20 |
| Type of installation | Top hat rail mounting |
| Service temperature | -30 - 55 °C |
Downloads
2-channel programmable timer
