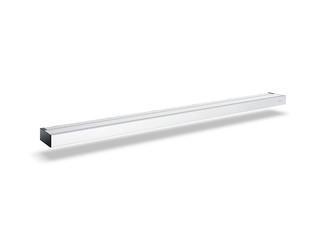

Slimdrive SL NT-FR Automatic linear sliding door system for escape and rescue routes with low overall height and clear design line
- Escape route function with redundant drive design
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
- Various mechanical and electrical locks are optionally available
Application Areas
- Single and double leaf sliding door systems along escape and rescue routes
- Interior and exterior doors with high access frequency
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Opening widths from 700 to 3000 mm possible
- Door leaf weights of up to 125 kg per leaf
- Suitable profile systems are fine-framed profile systems with ISO and MONO glass, all-glass systems (GGS) and on-site frames and timber leaves
Installation situations in reference objects and videos
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.

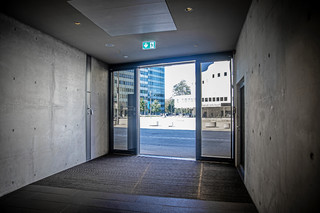

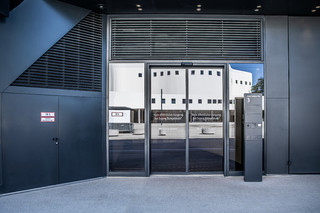

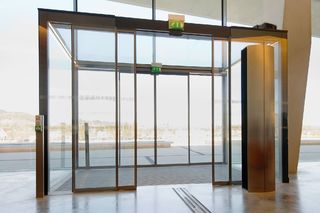

Slimdrive SL NT-FR automatic sliding door drive, installed in the Grosspeter Tower Basel
Automatic linear sliding door system for escape and rescue routes with low height and clear design line. © Lorenz Frey / GEZE GmbH

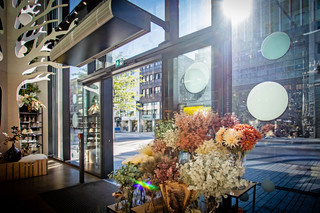

Slimdrive SL NT-FR

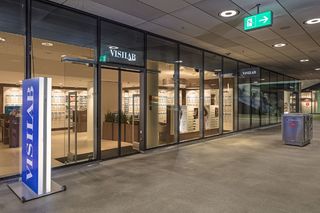

Entrances to shops and offices have been designed to be visually appealing with the sophisticated sliding door drive. It integrates perfectly into the post-rail elements of the spectacular façade of the Kö-Bogen II in Düsseldorf. © Jürgen Biniasch / GEZE GmbH
Slimdrive SL NT-FR
Entrances to shops and offices have been designed to be visually appealing with the sophisticated sliding door drive. It integrates perfectly into the post-rail elements of the spectacular façade of the Kö-Bogen II in Düsseldorf. © Jürgen Biniasch / GEZE GmbH
Slimdrive SL NT-FR
Entrances to shops and offices have been designed to be visually appealing with the sophisticated sliding door drive. It integrates perfectly into the post-rail elements of the spectacular façade of the Kö-Bogen II in Düsseldorf. © Jürgen Biniasch / GEZE GmbH

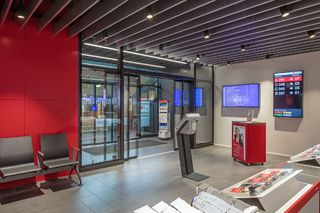

Installation of the automatic sliding door drive Slimdrive SL NT-FR at the railway station of Zurich Oerlikon
Automatic linear sliding door system for emergency exits with low height and clear design line © Lorenz Frey / GEZE GmbH
Installation of the automatic sliding door drive Slimdrive SL NT-FR at the railway station of Zurich Oerlikon
Automatic linear sliding door system for emergency exits with low height and clear design line © Lorenz Frey / GEZE GmbH

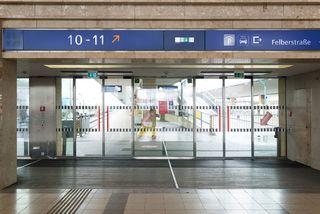

Installation of the automatic sliding door drive Slimdrive SL-FR Vienna Westbahnhof
Automatic linear sliding door system for emergency exits with low height and clear design line © Sigrid Rauchdobler / GEZE GmbH

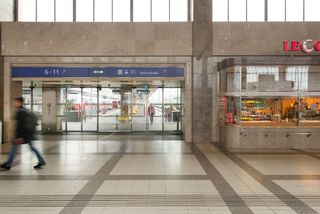

Automatic sliding door drive Slimdrive SL-FR in Vienna West Station
The Slimdrive SL-FR allows visitors barrier-free access and comfortable entrance to the Westbahnhof in Vienna © Sigrid Rauchdobler / GEZE GmbH
Installation of the automatic sliding door drive Slimdrive SL-FR Vienna Westbahnhof
Automatic linear sliding door system with low height and clear design line © Sigrid Rauchdobler / GEZE GmbH
Installation of the automatic sliding door drive Slimdrive SL NT-FR at the railway station of Zurich Oerlikon
Automatic linear sliding door system for emergency exits with low height and clear design line © Lorenz Frey / GEZE GmbH

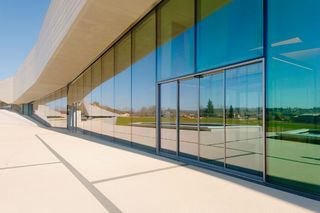

Automatic sliding door drive Slimdrive SL NT-FR Grotte de Lascaux Montignac
Glass façade with automatic linear sliding door system for emergency exits in the cave of Lascaux © Jean-Luc Kokel / GEZE GmbH
Installation of the automatic sliding door drive Slimdrive SL NT-FR as a vestibule in the cave of Lascaux
Optimum for single- and double leaf sliding door systems in emergency exits, this product is perfectly suited for interior and exterior doors with high access frequency. © Jean-Luc Kokel / GEZE GmbH
Swing door solutions - Slimdrive SL-FR, TSA 160 NT F-IS, RSZ 5 and GC 334
Two demands, two solutions and one design in the building of the Catholic Church, Stuttgart © Dirk Wilhelmy / GEZE GmbH

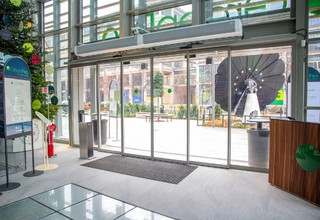

Green Pea Shopping Centre Turin
Smart door systems such as the Slimdrive SLT FR reduce the heat consumption of a building. © GEZE GmbH
Technical data
| Slimdrive SL NT-FR | |
| For 1-leaf door systems | Yes |
| For 2-leaf door systems | Yes |
| Fine-framed insulating glass | Yes |
| MONO glass fine-framed | Yes |
| All-glass system (GGS) | Yes |
| Wooden leaf (on site) | Yes |
| Height | 70 mm |
| Depth | 190 mm |
| Leaf weight (max.) 1-leaf | 125 kg |
| Leaf weight (max.) 2-leaf | 125 kg |
| Opening width 1-leaf | 700 mm - 3000 mm |
| Opening width 2-leaf | 900 mm - 3000 mm |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Disconnection from mains | Main switch in the drive |
| Standard conformity | M-AutSchR. DIN 18650. DIN EN ISO 13849: Performance Level D. EN 16005 |
