ECdrive T2 Automatic linear sliding door system for doors up to 140 kg leaf weight
- Slim design with a cover height of just 100 mm for greater creative freedom
- With double roller carriage and GCprofile Therm up to 140 kg leaf weight
- Efficient installation thanks to pre-drilled tracks and elongated holes
- Full floor guide available for controlled diversion of rainwater
- Integrated cable routings make cable laying easier
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated battery for emergency opening and closing in the event of a power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
- Various mechanical and electrical locks are optionally available
- Service interface for easy maintenance
With its streamlined design, the ECdrive T2 guarantees new design possibilities and an outstanding price-performance ratio. Energy efficiency is additionally improved in conjunction with the GCprofile Therm profile system.
Application Areas
- Single and double leaf sliding door systems
- Interior and exterior doors with high access frequency
- Complete solution for entrance areas with GCprofile Therm and fanlight
- If extra impermeability or energy efficiency are needed
- Opening widths from 700 to 3000 mm possible
- Door leaf weight of up to 140 kg per leaf
- Suitable profile systems are fine-framed profile systems with insulating and MONO glass, GCprofile Therm, toughened safety glass clamping profile, on-site frame and wooden leaves
Installation situations in reference objects and videos
SJD Pediatric Cancer Center
Access to the building with the ECdrive © Pau Esculies / GEZE Iberia
Hôtel Richer de Belleval Montpellier

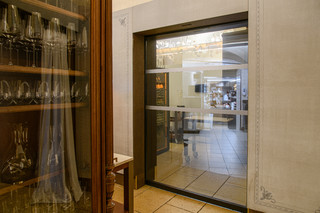

Hygienic and practical at the same time: the ECdrive T2 sliding door to the kitchen is operated with a foot switch. © Samuel Duplaix / GEZE GmbH
Hôtel Richer de Belleval Montpellier

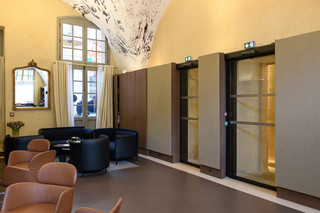

The reception desk and the reception hall, with its sliding door and single leaf ECdrive T2. The barrier-free/access and non-contact entrance area is equipped with the combined detector GC 363. © Samuel Duplaix / GEZE GmbH
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.
Rigshospitalet Denmark
ECdrive with non-contact proximity switch for non-contact operation ensures hygienic access to operating rooms and patient rooms. © GEZE GmbH
The new ECdrive T2
Single and double leaf sliding door systems. Interior and exterior doors with high access frequency. Slim design with a cover height of just 100 mm for enhanced creative freedom. Available continuous floor guide for controlled drainage of rainwater, has an integrated rechargeable battery for emergency opening and closure in case of a power failure.

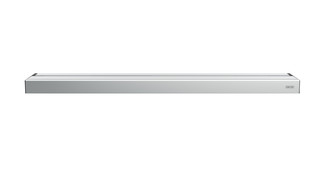

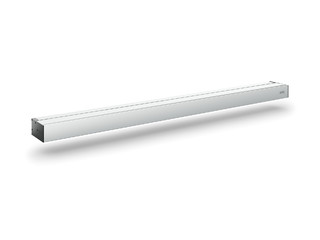

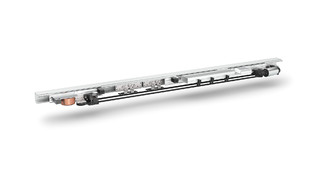

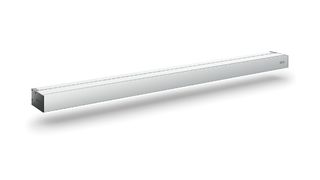

ECdrive T2 sliding door system
The continued development of the reliable ECdrive sliding door solution offers new advantages, especially for the demands of doors that are very large and/or wide. © GEZE GmbH
Technical data
| ECdrive T2 | |
| For 1-leaf door systems | Yes |
| For 2-leaf door systems | Yes |
| Fine-framed insulating glass | Yes |
| MONO glass fine-framed | Yes |
| ESG clamping profile | Yes |
| Framed leaf (on site) | Yes |
| Wooden leaf (on site) | Yes |
| Height | 100 mm |
| Depth | 190 mm |
| Leaf weight (max.) 1-leaf | 120 kg |
| Leaf weight (max.) 1-leaf with GCprofile Therm and double roller carriage | 140 kg |
| Leaf weight (max.) 2-leaf | 120 kg |
| Leaf weight (max.) 2-leaf with GCprofile Therm and double roller carriage | 140 kg |
| Opening width 1-leaf | 700 mm - 3000 mm |
| Opening width 1-leaf with GCprofile Therm | 1500 mm |
| Opening width 2-leaf | 900 mm - 3000 mm |
| Opening width 2-leaf with GCprofile Therm | 3000 mm |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Disconnection from mains | Main switch in the drive |
| Standard conformity | DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005 |

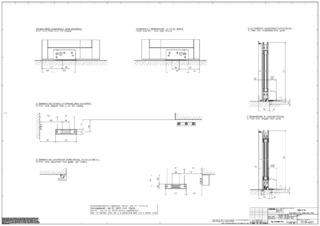

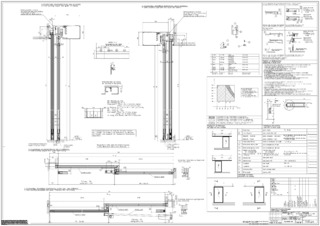

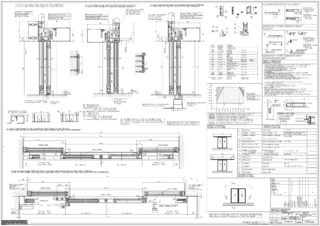

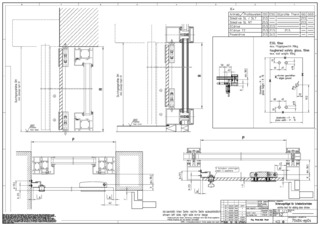

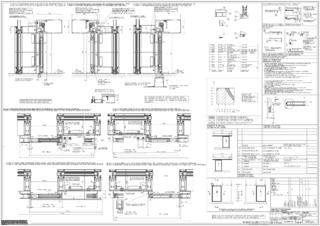

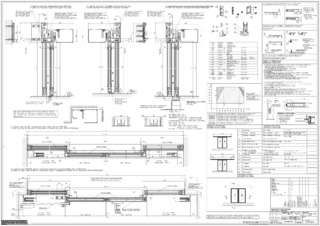

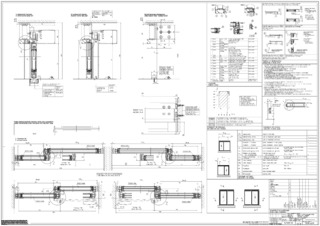

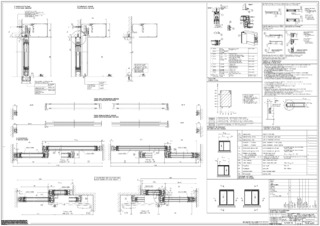

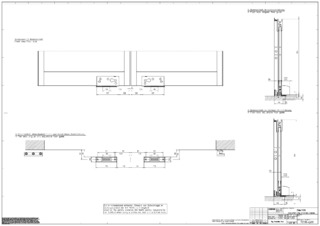

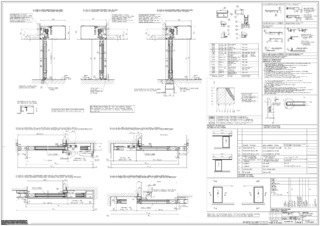

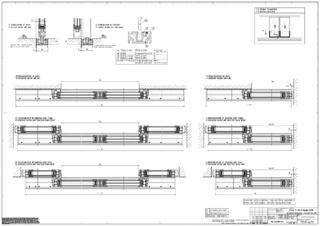

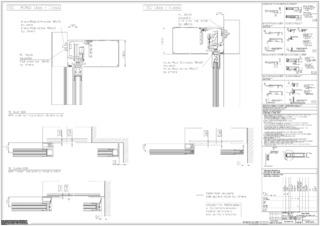

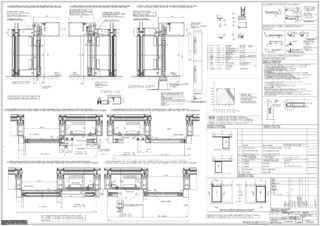

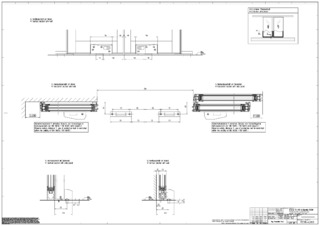

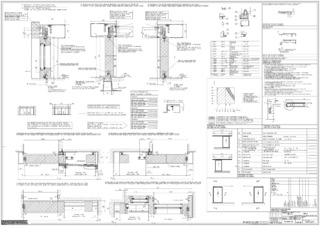

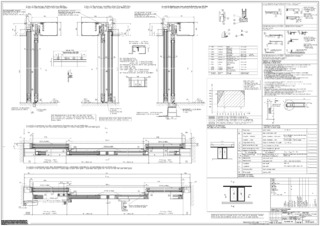

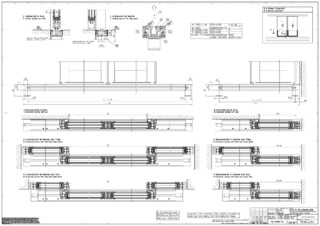

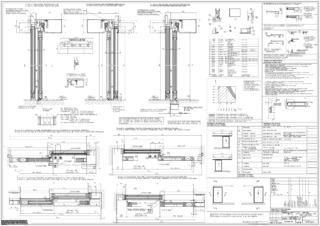

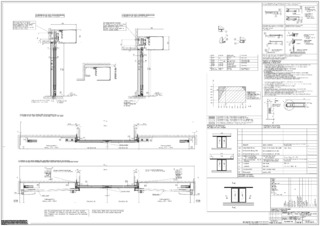

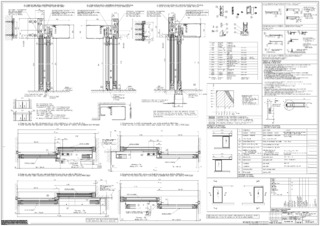

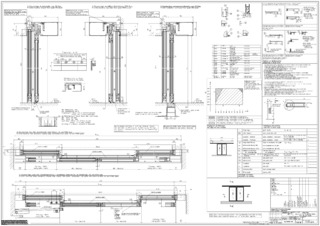

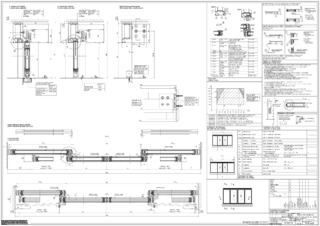

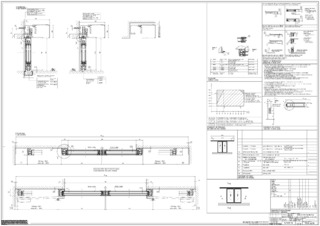

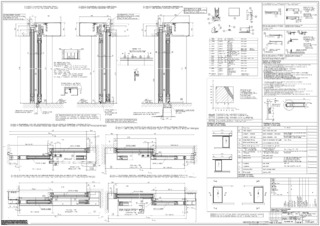

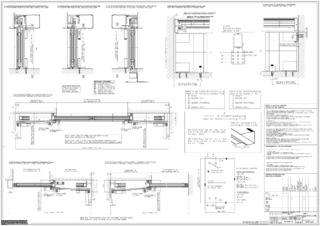

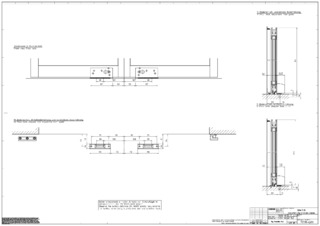

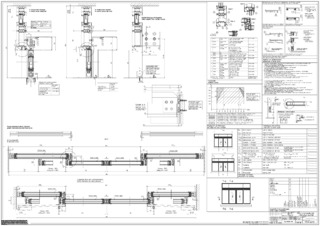

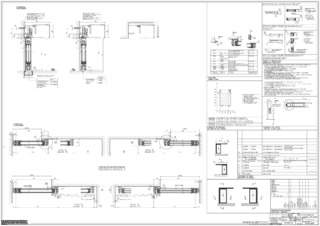

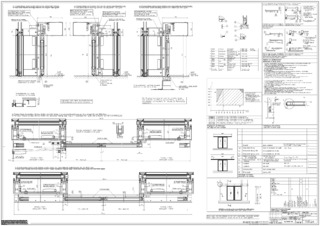

Downloads
