Slimchain 230 V Chain drive in an attractive design with numerous possible applications in 230 V version

Slimchain 230 V
  • Can be integrated perfectly into the façade design thanks to its slim and discreet look
  • Fast and easy installation with the Smart fix installation system
  • Direct 230 V connection of the drive via a connection terminal with cable plug
  • Concealed 230 V line-feed

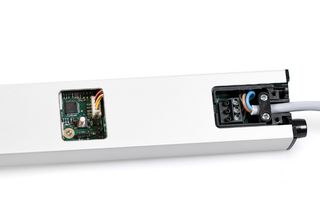

  • Direct access to the electronics for parameter setting via service cover
  • Drive stroke with variable adjustment
Show more
  • Available as special version - stroke, cable length, colour and left/right alignment configurable
Contact us

Slimchain 230 V

Application Areas

  • Natural ventilation in the façade area
  • Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves
  • Outward opening projected top hung windows
  • Installation on wooden, PVC or metal windows
  • Leaf, frame or integrated installation
Safety note

Safety note

Falling window leaves can be a considerable risk to life and limb of persons in the vicinity. Therefore, the use of GEZE safety scissors is mandatory when using GEZE drives on bottom-hung windows.

Technical data

Slimchain 230 V
Dimensions 25 x 44 mm
Space needed on frame (min.) Frame installation inward-opening: 40 mm, leaf installation inward-opening: 16/21 mm, frame installation outward-opening: 31 mm
Space requirement on leaf (min.) Frame installation inward-opening: 40 mm, leaf installation inward-opening: 34/29 mm, frame installation outward-opening: 19 mm
Opening speed ventilation 5 mm/s
Closing speed (max.) 5 mm/s
Force of pressure (max.) 100 N (depending on stroke), see force-path chart
Locking force (max.) 2000 N
Tensile force 300 N
Leaf weight 200 kg*
Overlap area 0 - 23 mm (depending on the application and bracket set)
Voltage at operation 230 V ± 10 %
Operating voltage 230 V
Current consumption 0.3 A
Power consumption 30 W
Duty rating 30 %
Special length of connector cable 5 m, 7.5 m
Min. core cross section 0.75 mm²
Number of cores 3 cores
Service temperature -5 - 70 °C
IP rating IP30
protection rating II
Adjustable opening speed (ventilation) Yes
Type of stroke shortening Synchronising unit, Factory setting
End position cut-off extended electronic, via internal path sensor
End position cut-off retracted electronically via current consumption
Overload cut-off Yes
Bottom-hung window INWARD-opening frame installation Yes
Bottom-hung window inward opening leaf installation Yes
Bottom-hung window OUTWARD-opening frame installation Yes
Side-hung window INWARD-opening frame installation Yes
Side-hung window INWARD-opening door leaf installation Yes
Side-hung window OUTWARD-opening frame installation Yes
Top-hung window INWARD-opening frame installation Yes
Top-hung window INWARD-opening leaf installation Yes
Top-hung window OUTWARD-opening frame installation Yes
Projected top-hung window OUTWARD-opening frame installation Yes

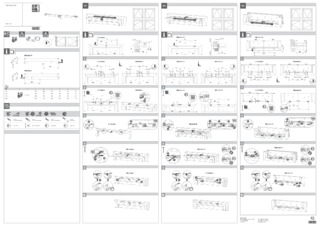

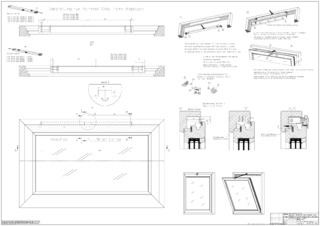

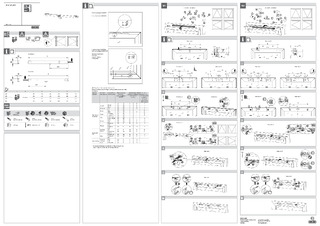

Downloads

Slimchain 230 V, Accessories chain drive

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (1104200)

Variants & Accessories

Safety scissors no. 35
Accessories

Safety scissors no. 35

For protection of bottom-hung leaves

Product details
Safety scissor stay no. 60
Accessories

Safety scissors no. 60

For protection of bottom-hung leaves

Product details
Bracket set A Slimchain
Accessories

Bracket set A Slimchain

For bottom-hung, side-hung and top-hung windows

Product details
