Slimchain Chain drive in an attractive design with numerous possible applications in 24 V version
- Can be integrated perfectly into the façade design thanks to its slim and discreet look
- Continuously adjustable drive stroke and individual speeds for ventilation and smoke and heat extraction
- Available as special version - stroke, cable length, colour and alignment configurable to left hand/right hand door
- Synchronisation of max. four drives without external control unit
- DIP switches for changing the mode of operation (Solo and Syncro, master, slave)

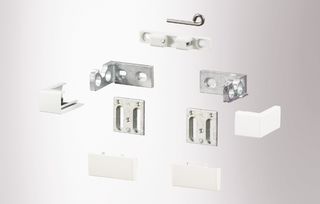

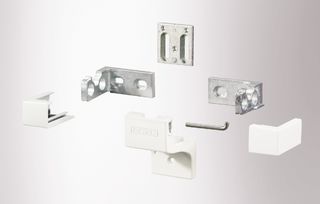

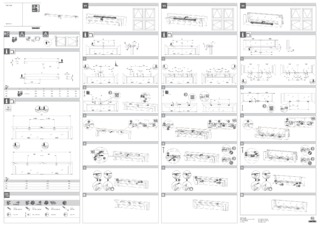

- Fast and easy installation with the Smart fix installation system
- IQ windowdrive - intelligent drive control
- Tested as a natural smoke and heat exhaust ventilation device (SHEV) in accordance with EN 12101-2
Application Areas
- Smoke and heat extraction system and natural ventilation (24 V) in the façade area
- Can be used in exhaust air and air inlet systems

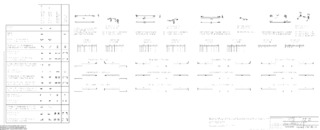

- Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves
- Projected top hung and parallel opening windows
- Installation on wooden, PVC or metal windows

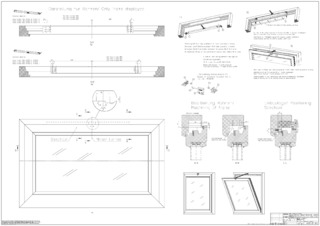

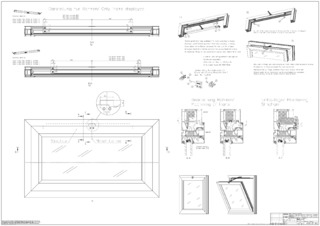

- Leaf, frame or integrated installation
- System solution in combination with the Power lock locking drive
Installation situations in reference objects and videos
GEZE Slimchain window opener installation video

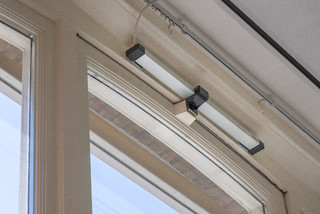

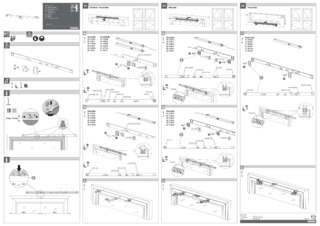

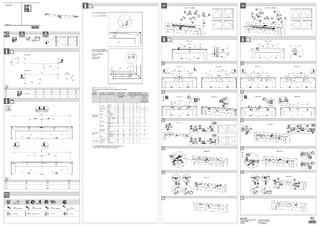

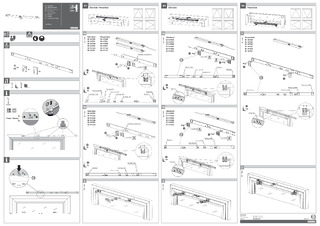

The GEZE Slimchain electric window opener can be mounted easily and quickly with the GEZE smart fix installation system.

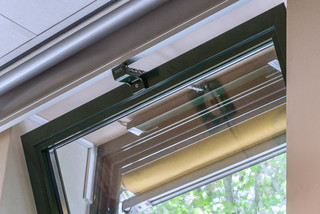

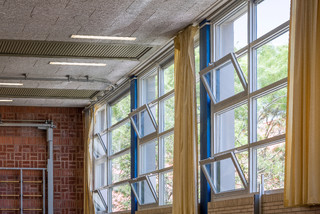

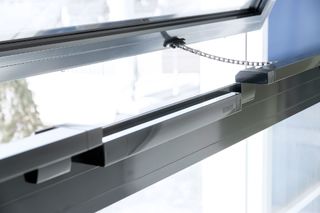

Chain drive Slimchain with LZR-i100 laser scanner installed in an office building

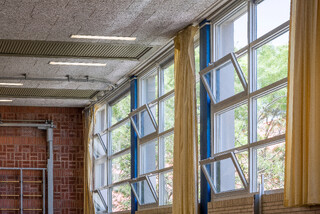

Chain drive Slimchain with LZR-i100 laser scanners in an attractive design with numerous possible applications © Jürgen Pollak / GEZE GmbH

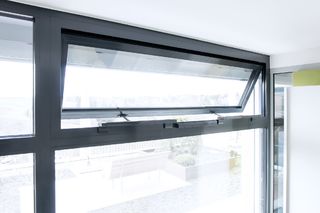

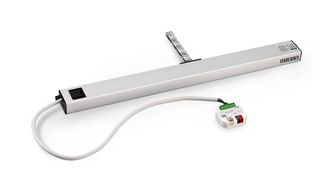

Chain drive Slimchain

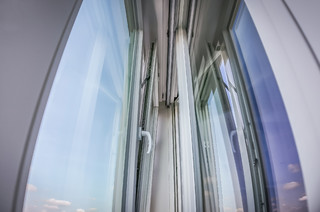

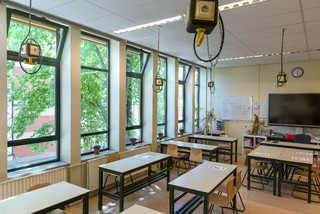

Chain drive Slimchain in an office building © Exorbitart / GEZE GmbH

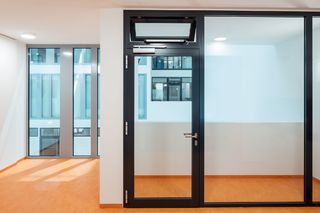

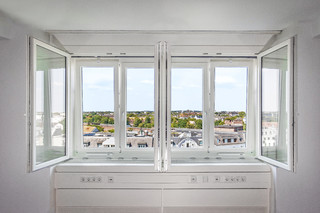

Chain drive Slimchain, installed in an office building
Smoke and heat extraction system and natural ventilation (24 V) in the façade area Can be used in the exhaust and fresh air system © Exorbitart / GEZE GmbH
GEZE service case for IQ windowdrive series of GEZE product video
The service case provides everything for the on-site commissioning and testing of window drives from the IQ windowdrive series from GEZE, even without any power connection.
GEZE IQ windowdrives installation video synchronous operation, Powerchain drives
The service case is used to quickly and easily put window drives from the IQ windowdrives series into service and test them without the need for an electrical connection.
Safety note
Falling window leaves can be a considerable risk to life and limb of persons in the vicinity. Therefore, the use of GEZE safety scissors is mandatory when using GEZE drives on bottom-hung windows.

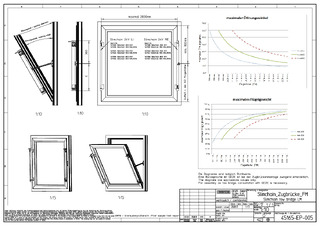

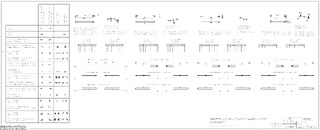

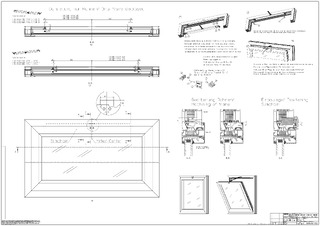

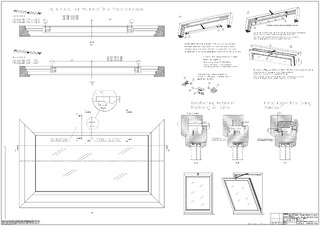

Technical data

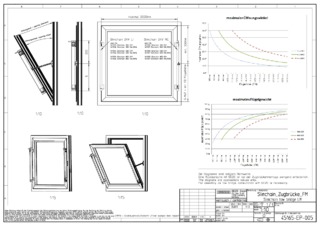

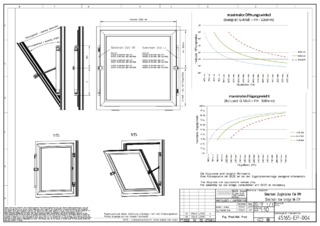

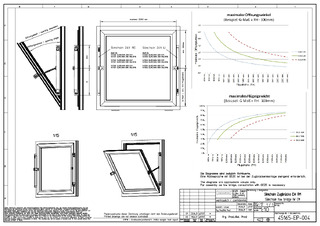

| Slimchain | |
| Dimensions | 25 x 44 mm |
| Space needed on frame (min.) | Frame installation inward-opening: 40 mm, leaf installation inward-opening: 16/21 mm, frame installation outward-opening: 31 mm |
| Space requirement on leaf (min.) | Frame installation inward-opening: 40 mm, leaf installation inward-opening: 34/29 mm, frame installation outward-opening: 19 mm |
| Opening speed RWA | 15 mm/s |
| Opening speed ventilation | 5 mm/s |
| Closing speed (max.) | 5 mm/s |
| Force of pressure (max.) | 100 N (depending on stroke), see force-path chart |
| Locking force (max.) | 2000 N |
| Tensile force | 300 N |
| Leaf weight | 200 kg* |
| Overlap area | 0 - 23 mm (depending on the application and bracket set) |
| Voltage at operation | 24 V ± 25 % |
| Operating voltage | 24 V DC |
| Current consumption | 1.1 A |
| Current consumption according to area of application | Ventilation (24 V): 0.9 A; RWA (18 V): 1.1 A |
| Power consumption | 22 W |
| Duty rating | 30 % |
| Special length of connector cable | 5 m, 7.5 m |
| Min. core cross section | 0.75 mm² |
| Number of cores | 4 cores |
| Service temperature | -5 - 70 °C |
| IP rating | IP40 |
| protection rating | III |
| Syncro function | Yes |
| Adjustable opening speed (ventilation) | Yes |
| Additional locking available | Yes |
| Type of additional locking mechanism | Locking drive |
| Type of stroke shortening | Synchronising unit, Factory setting |
| End position cut-off extended | electronic, via internal path sensor |
| End position cut-off retracted | electronically via current consumption |
| Overload cut-off | Yes |
| Complete opening within 60 s | yes, including locking drive |
| NSHEV tested | Yes |
| NSHEV additional information | yes, including locking drive |
| Number synchronisation drive units | 4 |
| KNX ability | Yes |
| Bottom-hung window INWARD-opening frame installation | Yes |
| Bottom-hung window inward opening leaf installation | Yes |
| Bottom-hung window OUTWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening door leaf installation | Yes |
| Side-hung window OUTWARD-opening frame installation | Yes |
| Top-hung window INWARD-opening frame installation | Yes |
| Top-hung window OUTWARD-opening frame installation | Yes |
| Projected top-hung window OUTWARD-opening frame installation | Yes |
| Parallel-opening window OUTWARD-opening frame installation | Yes |
