Scissors OL 90 N Scissors OL 90 N with standard leaf bracket
- Achieves the full opening width of 170 mm for all leaf heights
- Little space necessary thanks to flat design of the scissors
- Locking in the scissors guarantees a safe leaf locking mechanism
- Unhinging inhibitor on the scissors offers additional safety
- Scissor unhooking by pressing the release button facilitates window cleaning from inside and outside
- Completely pre-mounted assembly groups facilitate installation
Application Areas
- Convenient daily ventilation for rooms and staircases
- Inward-opening rectangular windows with bottom-hung leaves
- Installation on wooden (no Euro-groove), PVC or aluminium windows
- Frame installation
Installation situations in reference objects and videos

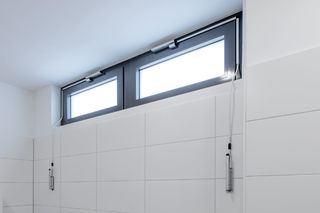

Fanlight opener OL 90 N with hand lever
Surface-mounted Slimline fanlight opener with an opening width of 170 mm © GEZE GmbH

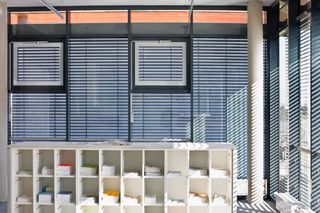

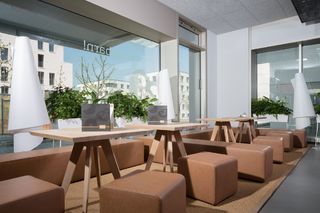

OL 90 N with hand lever, Academy of Fine Arts Alfter
Surface mounted Slimline skylight opener with an opening width of 170 mm © Lothar Wels / GEZE GmbH

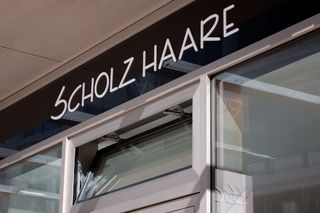

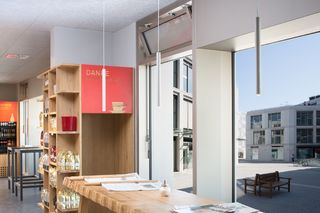

OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N with hand lever, Academy of Fine Arts Alfter
Surface mounted Slimline skylight opener with an opening width of 170 mm © Lothar Wels / GEZE GmbH
OL 90 N, Hotel Amano
Surface mounted Slimline skylight opener with an opening width of 170 mm © Stefan Dauth / GEZE GmbH
TS 5000 + OL 90 N post-frame transmission, Augustinum
TS 5000: Fire and smoke protection doors + OL 90 N: Inward opening bottom-hung windows, post-frame transmission © Dirk Wilhelmy / GEZE GmbH
Technical data
| Scissors OL 90 N | |
| Opening width (max.) | 170 mm |
| Leaf width (min.) | 380 mm |
| Leaf height (min.) | 250 mm |
| Leaf weight (max.) | 80 kg |
| Space needed (max.) | 19 mm |
| Adjustable opening width (stroke reduction) | Yes |
