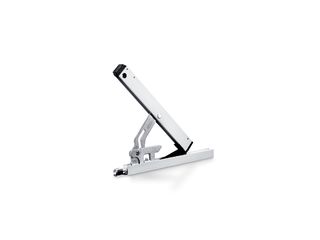

OL 90 N Surface-mounted fanlight opener with an opening width of 170 mm
- Achieves the full opening width of 170 mm for all leaf heights
- The opening width can be adjusted
- Little space necessary thanks to flat design of the scissors
- Integrated leaf locking mechanism in the scissors ensures secure locking
- Unhinging inhibitor and lockable hand lever offer additional safety
- Lock carrier and additional locking mechanisms increase safety and air-tightness
- Simple scissor re-setting or unhooking using the release button enables window cleaning from the inside and outside

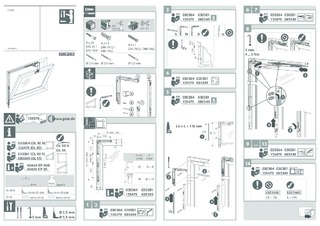

- Completely pre-mounted assembly groups facilitate installation
Application Areas
- Convenient daily ventilation for rooms and staircases
- Inward opening bottom-hung windows
- Can also be used on rectangular windows for inward-opening top-hung windows

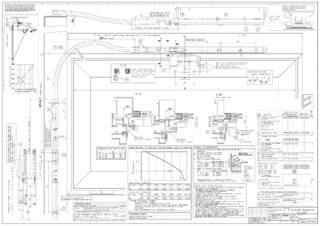

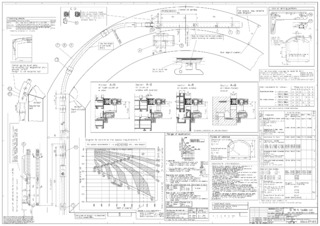

- Create specialised shapes like angled, triangular, round and segmental arch windows
- Individually adjustable for different areas of application (post/rail transmission and window reveal transmission, etc.)

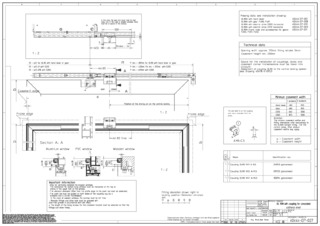

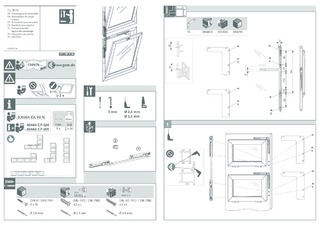

- Coupling and operation of several windows through corner angle transmission
- Automation by E 212 electric linear drive
- Installation on wooden, plastic or aluminium windows
- Frame installation

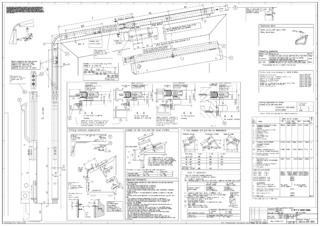

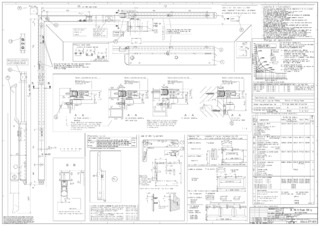

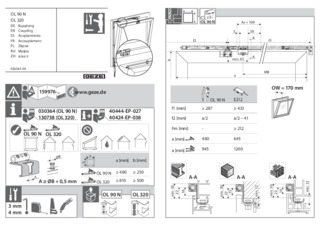

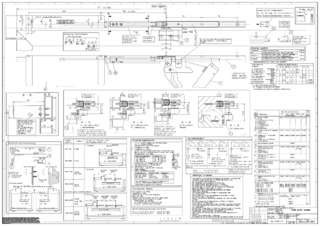

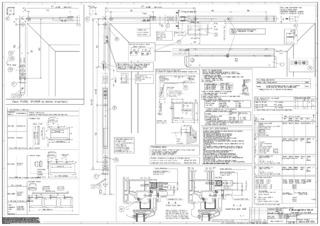

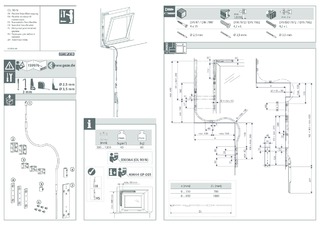

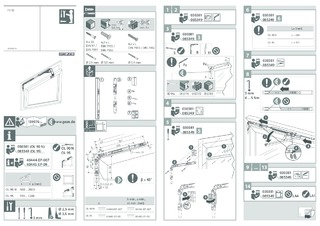

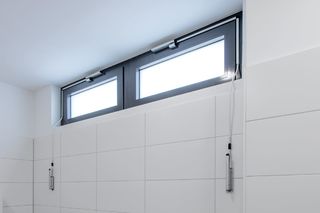

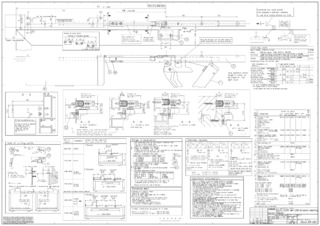

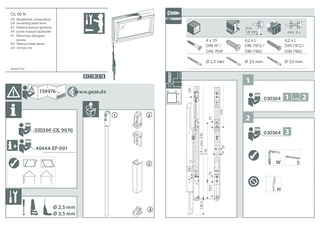

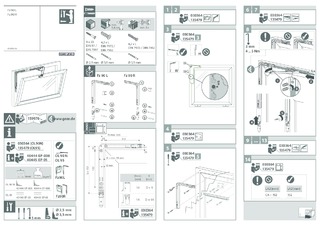

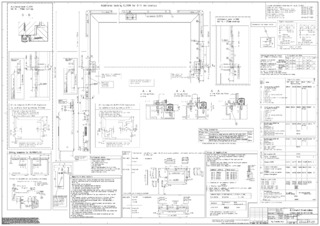

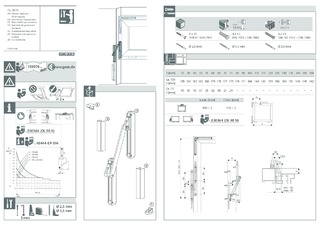

Installation situations in reference objects and videos
Technical data
OL 90 N | |
Length | 242 mm |
Depth | 49 mm |
Height | 16 mm |
Opening width (max.) | 170 mm |
Leaf width (min.) | 380 mm |
Leaf height (min.) | 250 mm |
Leaf weight (max.) | 80 kg |
Fitting stroke | 54 mm |
Adjustable opening width (stroke reduction) | Dependent |
Leaf locking mechanism integrated in the scissors | Yes |
Scissor unhooking by release button | Yes |
Burglar-resistant locking mechanism (SKG-certified) | Yes |
Lockable | Yes |
Unhinging inhibitor | Yes |
