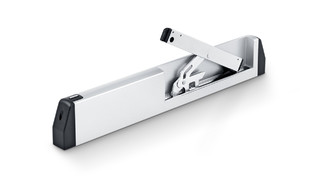

E 170 Scissor drive as design solution for optimum ventilation

  • Combines the OL 90 N fanlight opener and the E 212 electric linear drive in a single product
  • Scissor stays integrated in the cover profile
  • Attractive design and additional protection against contamination
  • Opening width is variably adjustable and can therefore be flexibly regulated on site
Contact us

Scissor drive as design solution for optimum ventilation

Application Areas

  • Natural ventilation (24 V or 230 V version) in the façade area
  • Inward-opening bottom-hung leaves
  • Installation on wooden, PVC or metal windows
  • Frame installation

Product specifications

E 170
Dimensions 547 x 35 x 85 mm
Height 85 mm
Depth 35 mm
i dimension 10 - 60 mm
Power consumption (max.) 90 W
Duty rating 25 %
Temperature range -5 °C - 60 °C
IP rating / protection rating IP42
Tandem function No
Syncro function No
Adjustable opening speed (ventilation) No
Additional locking available No
End position cut-off extended Limit switches
End position cut-off retracted Limit switches
Overload cut-off No
SHEV tested No
Bottom-hung window INWARD-opening frame installation Yes
Bottom-hung window INWARD-opening door leaf installation No
Bottom-hung window OUTWARD-opening frame installation No
Bottom-hung window OUTWARD-opening door leaf installation No
Side-hung window INWARD-opening frame installation No
Side-hung window INWARD-opening door leaf installation No
Side-hung window OUTWARD-opening frame installation No
Side-hung window OUTWARD-opening door leaf installation No
Top-hung window INWARD-opening frame installation No
Top-hung window INWARD-opening door leaf installation No
Top-hung window OUTWARD-opening frame installation No
Top-hung window OUTWARD-opening door leaf installation No
OUTWARD-opening roof window No
Projected top-hung window OUTWARD-opening frame installation No
Parallel-opening window OUTWARD-opening frame installation No
