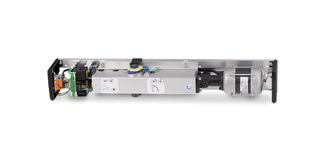

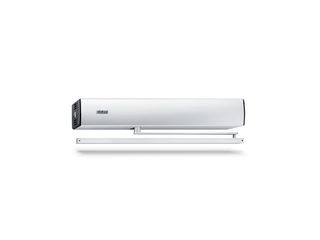

TSA 160 NT Electrohydraulic swing door drive for single leaf doors up to 250 kg
- Closing force with variable adjustment EN 3-6
- Opening and closing speed can be individually adjusted
- Hydraulic latching action which accelerates the door shortly before it is closed
- Mechanical and electrical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
- Integrated back check, slows down doors that are thrown open forcefully
- Automatic reversing detects an obstacle and returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf

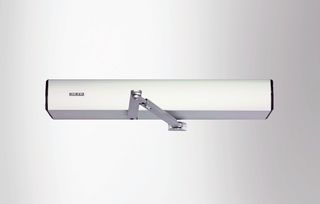

- Drive can be used with roller guide rail or link arm
Application Areas
- Single-action, single leaf, right and left closing doors
- Single-action doors up to 1400 mm leaf width or 250 kg weight
- Interior and exterior doors with high access frequency
- Door leaf installation and transom installation
Installation situations in reference objects and videos

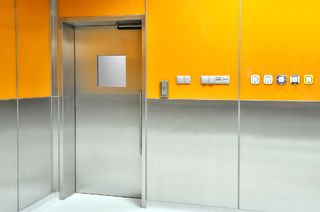

TSA 160 NT at Children's Hospital Warsaw, Poland
The TSA 160 NT IS automatic system is a swing door system with integrated, invisible closing sequence control. © Łukasz Janicki / GEZE GmbH
Comfortable access to the operating wing with TSA 160 NT, Children's Hospital Warsaw, Poland
The TSA 160 NT IS automatic system is a swing door system with integrated, invisible closing sequence control. © Łukasz Janicki / GEZE GmbH
TSA 160 NT - Electrohydraulic swing door drive for doors up to 250 kg
The TSA 160 NT IS automatic system is a swing door system with integrated, invisible closing sequence control. © Łukasz Janicki / GEZE GmbH

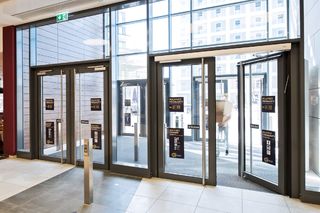

Overhead door closer with guide rail - TS 5000 and swing door drive/door closer - TSA 160 NT IS/TS, Milaneo
The TS 5000 L provides ease of access for visitors because heavy doors are slowed down close almost silently. These attributes also apply to the TSA 160 NT IS/TS only, that it also has the integrated Push & Go function. © Jürgen Pollak / GEZE GmbH

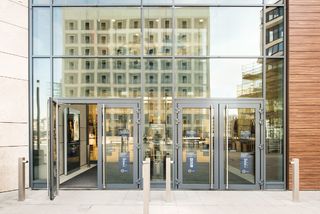

Overhead door closer with guide rail - TS 5000 and swing door drive/door closer - TSA 160 NT IS/TS, Milaneo
The TS 5000 L provides ease of access for visitors because it decelerates heavy doors during closing, allowing them to close almost silently. These attributes also apply to the TSA 160 NT IS/TS, although it also has the integrated Push & Go function. © Jürgen Pollak / GEZE GmbH
Swing door drive - TSA 160 NT F + smoke switch control unit - RSZ 5, Generali
Electrohydraulic swing door drive for single leaf fire and smoke protection doors with Push & Go function and automatic reversing. © Lothar Wels / GEZE GmbH

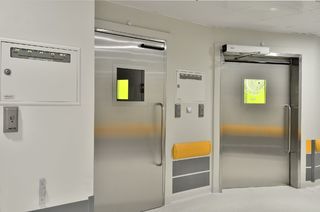

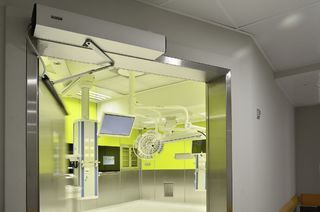

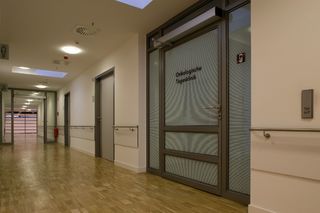

Swing door drive - TSA 160 NT, Robert Bosch Hospital
The TSA 160 NT has an integrated automatic reversing, it detects an obstacle and returns to the opening position. In addition, it has the Push & Go function which triggers the automatic drive after light manual pressure to the door leaf. © Nikolaus Grünwald / GEZE GmbH
TSA 160 NT-F - Electromechanical swing door drive system at Robert Bosch hospital, Stuttgart
Electrohydraulic swing door drive for single leaf fire and smoke protection doors, automatic reversing detects an obstacle and returns to opening position © Nikolaus Grünwald / GEZE GmbH
Swing door drive - TSA 160 NT, University of Applied Sciences and Arts, Holzminden
Electrohydraulic swing door drive creates a sense of accessibility and ease of access © Lothar Wels / GEZE GmbH

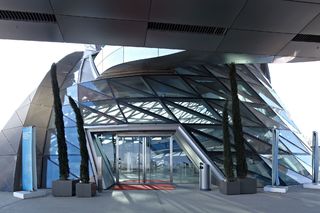

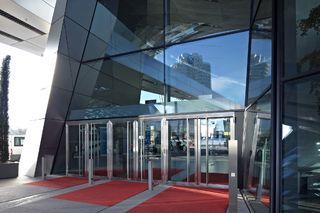

Door closer - TS 5000 L + Swing door drive - TSA 160 NT at BMW Welt
The combination of the overhead door closer with guide rail and the electrohydraulic swing door drive means that visitors to the BMW world experience a wonderful sense of accessibility. © Robert Sprang / GEZE GmbH

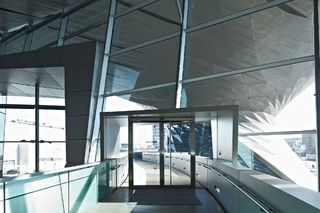

Swing door drive - TSA 160 NT at BMW Welt
The electro-hydraulic swing door drive allows visitors to move heavy doors (with weights up to 250 kg) with ease. This ease creates a sense of accessibility. In addition, the TSA 160 NT blends seamlessly into the overall design of the BMW world. © Robert Sprang / GEZE GmbH
Overhead door closer system with guide rail - TS 5000 L + swing door drive TSA 160 NT, BMW Welt
The TS 5000 L provides ease of access for visitors because heavy doors are slowed down close almost silently. These attributes also apply to the TSA 160 NT only, that it has also has the integrated Push & Go function. © Robert Sprang / GEZE GmbH
Swing door drive - TSA 160 NT, BMW Welt
The TSA 160 NT has an integrated automatic reversing, it detects an obstacle and returns to the opening position. In addition, it has the Push & Go function which triggers the automatic drive after light manual pressure to the door leaf. © Robert Sprang / GEZE GmbH

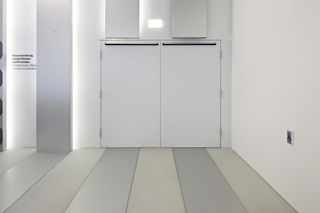

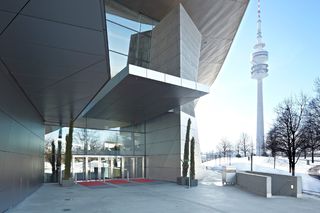

Swing door drive - TSA 160 NT, BMW Museum Munich
The TSA 160 NT has an integrated automatic reversing, it detects an obstacle and returns to the opening position. In addition, it has the Push & Go function which triggers the automatic drive after light manual pressure to the door leaf. © Robert Sprang / GEZE GmbH

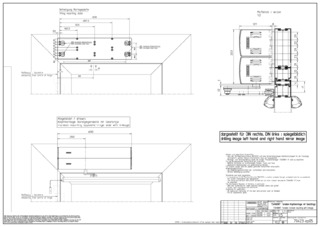

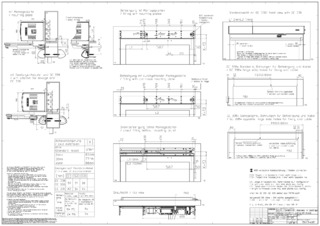

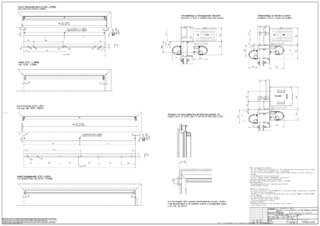

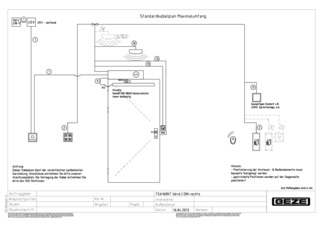

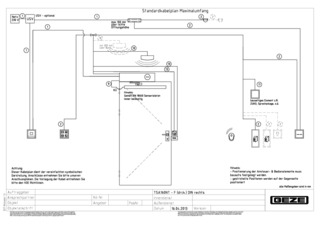

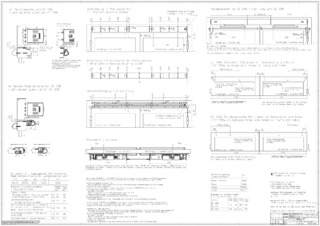

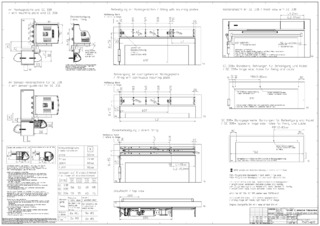

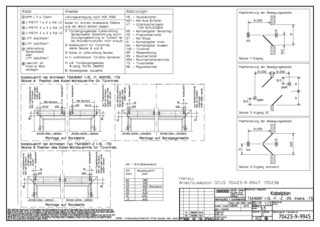

Technical data
| TSA 160 NT | |
| Height | 100 mm |
| Depth | 121 mm |
| Leaf weight (max.) 1-leaf | 250 kg |
| Distance centre door hinge-drive axis (min.-max.) 2-leaf | 1470 mm - 2800 mm |
| Leaf width (min.-max.) | 690 mm - 1400 mm |
| Reveal depth (max.) | 400 mm |
| Door overlap (max.) | 20 mm |
| Drive type | Electrohydraulic |
| Opening angle (max.) | 115 ° |
| Spring pre-load | EN 3 - EN 6 |
| DIN left | Yes |
| DIN right | Yes |
| Transom installation opposite hinge side with link arm | Yes |
| Mechanical latching action | Yes |
| Electrical closing sequence control | Yes |
| Disconnection from mains | Not available |
| Activation delay (max.) | 10 s |
| Operating voltage | 230 V |
| Power rating | 300 W |
| Power supply for external consumers (24 V DC) | 1200 mA |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Mode of operation | Off, Automatic, Permanently open, Shop closing, Night |
| Type of function | Fully automatic |
| Automatic function | Yes |
| Key function | Yes |
| Vestibule function | Yes |
| Obstacle detection | Yes |
| Automatic reversing | Yes |
| Push & Go | adjustable |
| Operation | Programme switch DPS |
| Parameter setting | GEZEconnects (PC + Bluetooth), Service terminal ST 220 |
| Standard conformity | DIN 18650. EN 16005 |
