GC 342 Laser scanner for the protection of automatic doors and windows with integrated object and wall blanking

GC 342 Laser scanner, Single sensor right compact safety sensor, safeguarding
  • Compact and space-saving safety sensor
  • Narrow detection area secures door leaf widths up to max. 1600 mm
  • Integrated object and wall blanking near maximum door opening
  • Protection area on the main closing edge is automatically expanded depending on the door angle
  • Automatized teaching of the system with the push of a button
  • Avoidance of hazards at pinching and shearing edges on automated windows
Contact us

GC 342

Application Areas

  • Protection of automatic swing and revolving doors
  • Interior and exterior doors
  • Use on doors up to 1600 mm leaf width
  • Complicated flooring, such as reflective floors, entrance mats, metal rails
  • Use on doors with continuous vertical pull handle
  • Protection of the main and secondary closing edges on automated windows

Installation situations in reference objects and videos

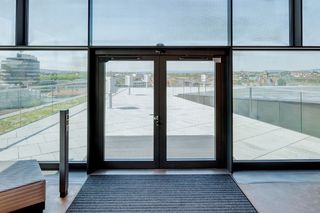

GEZE Powerturn F/R with GC3 42 laser scanner The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience.

GEZE Powerturn F/R with GC3 42 laser scanner

The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH

Technical data

GC 342
Dimensions 143 x 86 x 40 mm
Technology Laser scanner, light travel time measurement
Number of active infrared detectors 1
Operating voltage 12-24 V DC ± 15%
Switching voltage 42 V
Switching current 100 mA
Output 2 potential-free relay contacts
IP rating IP54
Connector cable length 2500 mm
Installation height (min.) 1500 mm
Installation height (max.) 3870 mm
Reaction time Door leaf safety: < 50 ms / pinch zone safety: < 90 ms
Service temperature -30 - 60 °C
Humidity 0-95 % relative, non-condensing
Standard conformity DIN 18650, EN 16005

Downloads

!Slimdrive EMD-F/R-IS, Uni Schloss Mannheim!

LABELLING OBLIGATION:  © Nico Walke / GEZE GmbH

Installation situation (2274901)
!Slimdrive EMD-F/R-IS, Uni Schloss Mannheim!

LABELLING OBLIGATION:  © Nico Walke / GEZE GmbH

Installation situation (2274905)

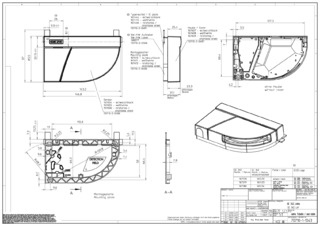

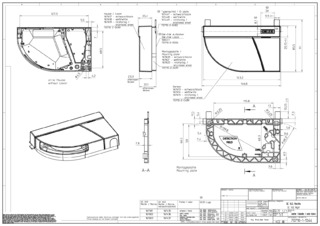

GC 342 Laser scanner

LABELLING OBLIGATION:  © GEZE GmbH

Installation situation (1125370)

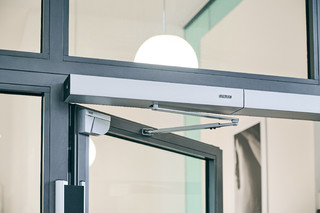

GEZE Powerturn F/R with GC 342 laser scanner

LABELLING OBLIGATION:  © Jürgen Pollak / GEZE GmbH

Installation situation (1224067)

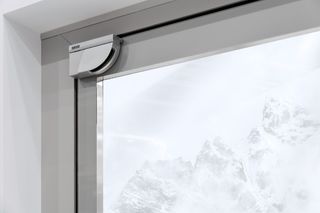

GEZE Slimdrive EMD IS with GC 342 laser scanner

LABELLING OBLIGATION:  © Jürgen Pollak / GEZE GmbH

Installation situation (1224076)
Slimdrive EMD with GC 342 laser scanner and TZ 320 door control unit

LABELLING OBLIGATION:  © Jürgen Pollak / GEZE GmbH

Installation situation (1259235)
GC 342 Laser scanner kit

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (666541)
GC 342 Laser scanner kit

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (666539)
GC 342 Laser scanner, Single sensor left

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (666535)
GC 342 Laser scanner, Single sensor left

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (666536)
GC 342 Laser scanner, Single sensor left

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (666534)
GC 342 Laser scanner, Single sensor right

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (666537)
GC 342 Laser scanner, Single sensor right

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (666538)
GC 342 Laser scanner, Single sensor right

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (1804434)

Variants & Accessories

GC 342 Fire protection adapter
Accessories

GC 342 / GC 342+ fire protection adapter

Necessary for laying the connection cable hinge side/opposite hinge side with drill hole diameters of 5 mm

Product details
GC 342 retrofit interface
Accessories

GC 342 retrofit interface

For easy and time-saving connection of the sensor on pre-cabled doors

Product details
GC 342 Protective cover set
Accessories

GC 342 protection hood set

Avoids the activation of radar detectors installed near the sensor

Product details
