TS 5000

Closer body TS 5000 Main body for overhead door closer with guide rail EN 2-6 with back check

GEZE TS 5000 Closer body Overhead door closer with guide rails for single leaf fire and smoke protection doors
  • Closing force can be variably adjusted from the front
  • Visual closing force display ensures correct setting
  • Closing seed can be adjusted from the front via valve
  • Latching action can be adjusted from the front via valve
  • Back check can be adjusted from the front via valve
  • Door closer, can be used for right and left hand doors
  • Minimal installation effort due to low number of individual parts and quick setting
Contact us

Closer body TS 5000

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side

Installation situations in reference objects and videos

TS 5000 door closer installation video The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.

TS 5000 door closer installation video

The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.

Technical data

Closer body TS 5000
Closing force in accordance with EN 1154 EN 2 - 6
Leaf width (max.) 1400 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Standard conformity EN 1154:1996/A1:2002/AC:2006
Suitability for fire protection doors Yes
Length 287 mm
Width 47 mm
Height 60 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Safety valve againts overload Yes
Thermo-control valves Yes

Downloads

GEZE TS 5000 Closer body Product shot (675534)
LABELLING OBLIGATION:  © GEZE GmbH

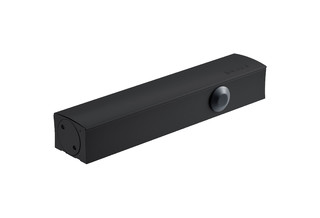

GEZE TS 5000 Closer Product shot (1802832)
LABELLING OBLIGATION:  © GEZE GmbH
Closer body TS 5000 Product data sheet EN
Download (.PDF | 479 KB)
Certificate EN (1846471)
Download (.PDF | 820 KB)
Certificate EN (759072)
Download (.PDF | 639 KB)
Supplementary sheet BG CS DA DE EL EN ES ET FI FR HU IT LT LV MT NL PL PT RO RU SK SL SV ZH (759073)
Download (.PDF | 560 KB)
Supplementary sheet DE EN (768969)
Download (.PDF | 764 KB)
Environmental declaration EN (760382)
Download (.PDF | 613 KB)
Environmental declaration EN (2544798)
Download (.PDF | 263 KB)

Variants & Accessories

Lintel casing bracket Transom installation opposite hinge side
Material

Lintel casing bracket

For TS 5000/TS 4000

Product details
Drilling template door closer
Material

Drilling template door closer

for TS 5000/TS 4000/TS 3000/TS 2000

Product details
Glass clamping shoe door closer
Material

Glass clamping shoe

For TS 5000/TS 4000

Product details
