Slimdrive EMD-F 1-leaf swing door drive system

EMD rail with screw-in bolts configurable, with C-profile and screwable roller bolt

EMD-F roller guide rail, ROBO Powerturn
  • Compatible with integrated opening restrictor
  • Vertical mounting offset of the roller guide rail possible
  • Prevents the roller bolt from jumping out of the roller guide rail
Buy now

EMD rail with screw-in bolts

Application Areas

  • Suitable for single and double leaf swing doors
  • Suitable for the GEZE Slimdrive EMD drive series
  • Reveal depth up to 75 mm
  • Permitted for fire protection doors

Technical data

EMD rail with screw-in bolts
Suitability for fire protection doors Yes

Downloads

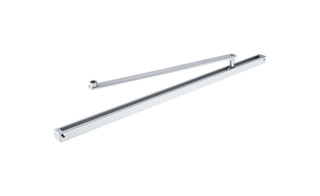

Product shot

EMD-F roller guide rail, ROBO Powerturn Product shot (76118)
LABELLING OBLIGATION:  © GEZE GmbH

Wiring diagram

Wiring diagram EN (53200)
Download (.PDF | 53 KB)

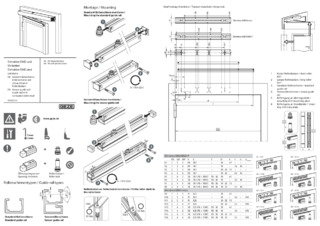

Installation instructions

Installation instructions DE EN (66124)
Download (.PDF | 1 MB)

Product data sheet

Download (.PDF | 428 KB)
