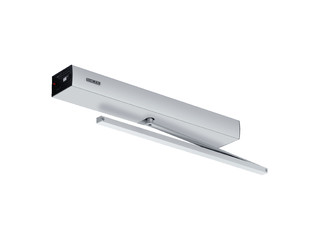

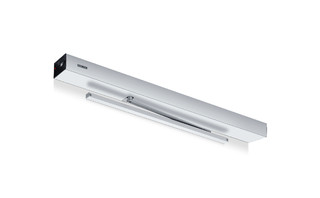

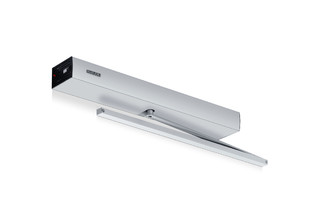

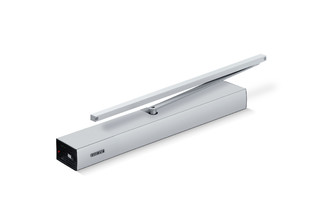

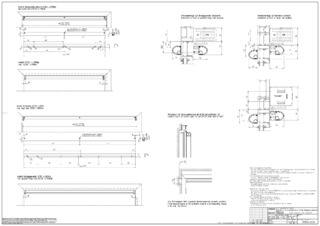

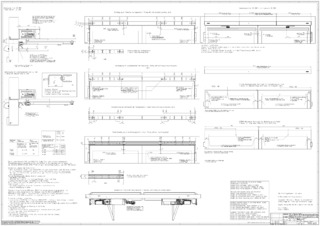

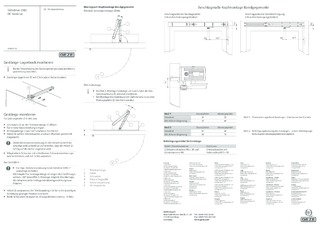

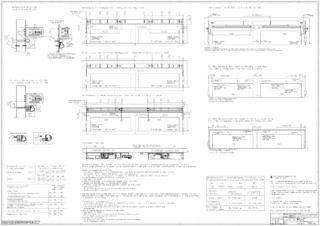

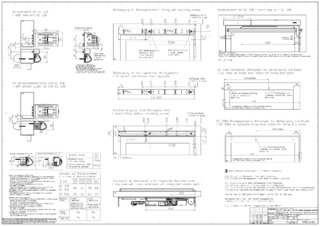

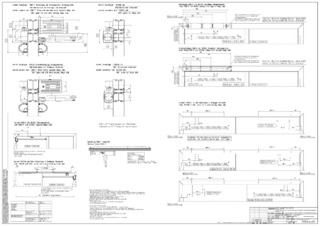

Slimdrive EMD-F Electromechanical swing door drive for single leaf fire and smoke protection doors
- Closing force with variable adjustment of EN 4-6
- Opening and closing speed can be individually adjusted
- Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closed position
- Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
- Servo function for motorized support when manually opening the door
- Obstacle detection detects an object through contact and stops the opening or closing process
- Automatic reversing detects an obstacle and returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf
- Drive can be used with roller guide rail or link arm
- Smoke switch control unit can be connected, whose signal makes the door close automatically in the event of a fire
- Freely configurable inputs and outputs for different functions
- Can be networked, and integrated into the building automation via open standard (BACnet)
Application Areas
- Fire and smoke protection doors
- Hold-open systems with integrated hold-open function – country-specific specifications must be observed
- Single-action, single leaf, right and left closing doors
- Single-action doors up to 1400 mm leaf width or 230 kg weight
- Interior and exterior doors with high access frequency
- Door leaf installation and transom installation
Installation situations in reference objects and videos
Swing door drive Slimdrive EMD-F at Medicus Clinic in Wrocławiu, Poland
Electromechanical swing door drive for 1-leaf fire and smoke protection doors with mechanical latching action in continuous current operation and electric latching action in regular operation, which accelerates the door just before the closed position is reached and obstacle detection detects an obstacle by touch and stops the opening or closing process. © Fotografia Maciej Lulko / GEZE GmbH
Swing door drive Slimdrive EMD-F IS at Medicus Clinic in Wrocławiu, Poland
Electromechanical swing door drive system for 2-leaf fire and smoke protection doors with closing sequence control and integrated smoke switch © Fotografia Maciej Lulko / GEZE GmbH
Swing door system Slimdrive EMD-F at Medicus Clinic in Wrocławiu, Poland
Electromechanical swing door drive for 1-leaf fire and smoke protection door with mechanical latching action in non-current operation and electric latching action in regular operation that accelerates the door shortly before reaching the closed position © Fotografia Maciej Lulko / GEZE GmbH
Swing door system Slimdrive EMD-F IS at Medicus Clinic in Wrocławiu, Poland
Electromechanical swing door drive system for 2-leaf fire and smoke protection doors with closing sequence control, obstacle detection, automatic reversing and Push & Go function. © Fotografia Maciej Lulko / GEZE GmbH

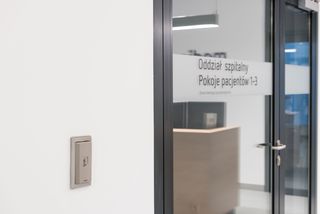

Push button for the Slimdrive EMD-F IS swing door drive
Push buttons for the swing door drive of Slimdrive EMD-F IS in Medicus Clinic in Wrocławiu, Poland © Fotografia Maciej Lulko / GEZE GmbH
Technical data
| Slimdrive EMD-F | |
| Leaf weight (max.) 1-leaf | 230 kg |
| Leaf width (min.-max.) | 750 mm - 1400 mm |
| Reveal depth (max.) | 400 mm |
| Door overlap (max.) | 30 mm |
| Drive type | Electromechanical |
| Opening angle (max.) | 130 ° |
| DIN left | Yes |
| DIN right | Yes |
| Transom installation opposite hinge side with link arm | Yes |
| Transom installation opposite hinge side with roller guide rail | Yes |
| Transom installation hinge side with roller guide rail | Yes |
| Door leaf installation opposite hinge side with roller guide rail | No |
| Door leaf installation hinge side with roller guide rail | Yes |
| Door leaf installation hinge side with link arm | No |
| Mechanical latching action | Yes |
| Electrical latching action | Yes |
| Disconnection from mains | Main switch in the drive |
| Activation delay (max.) | 20 s |
| Operating voltage | 230 V |
| Power rating | 230 W |
| Power supply for external consumers (24 V DC) | 1000 mA |
| Service temperature | -15 - 50 °C |
| Air humidity non-condensing (max.) | 95 % |
| IP rating | IP20 |
| Mode of operation | Automatic, Permanently open, Night, Off, Shop closing |
| Automatic function | Yes |
| Low-energy function | Yes |
| Servo function | Yes |
| Obstacle detection | Yes |
| Automatic reversing | Yes |
| Push & Go | adjustable |
| Operation | Programme switch integrated in the drive, Programme switch DPS, MPS programme switch |
| Parameter setting | Service terminal ST 220, Programme switch DPS, GEZEconnects (PC + Bluetooth) |
| Standard conformity | DIN 18263-4, DIN 18650, EN 16005 |
| Suitability for fire protection doors | Yes |
