Wireless programme
WTH Remote control for activating GEZE automatic doors and window drives via the GEZE wireless programme
- Combined activation of doors and windows using a remote control
- Encrypted communication via rolling code with up to 74 trillion code combinations
- Custom and reliable teach-in to exclude unauthorised activation
- Available in 1, 2, or 4 channel versions
- Doors can be controlled over great distances even through walls
- With two outputs to which individual receiving modules can be taught in
- Integrated dip switch for selecting different modes of operation, e.g. press the button briefly for “open door” and press button longer for “hold door open”
- LED function indicator for battery and transmission check
- Radio range up to 30 m inside the building
Application Areas
- Activation of GEZE automatic doors and window drives via the GEZE wireless program
- Activation of smoke and heat extraction systems
- Components can be activated wirelessly in a system concept individually, together, or in groups
Installation situations in reference objects and videos

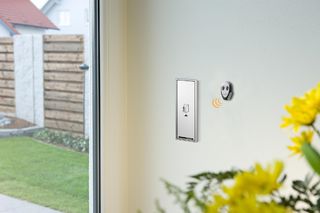

Activation remote control
Remote control for activation GEZE automatic doors and window drives over the GEZE wireless programme. © Studio BE / GEZE GmbH

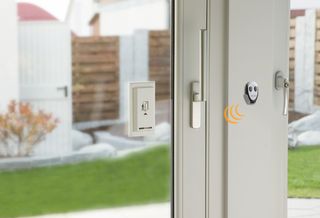

Remote control for activation
Remote control for activation of GEZE automatic doors and window drives using the GEZE wireless programme. © Studio BE / GEZE GmbH
Technical data
| WTH | |
| Dimensions | 78 x 51 x 15 mm |
| Operating current | 45 mA |
| IP rating | IP54 |
| Type of installation | Wall |
| Transmission frequency | 433.93 Mhz |
| Service temperature | 0 - 50 °C |
Downloads

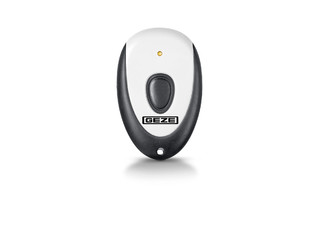

WTH 1 remote control
LABELLING OBLIGATION:
© GEZE GmbH

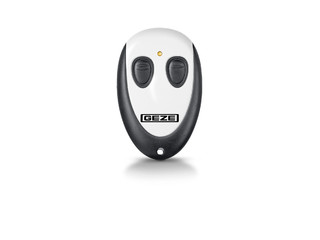

WTH-2 remote control
LABELLING OBLIGATION:
© GEZE GmbH

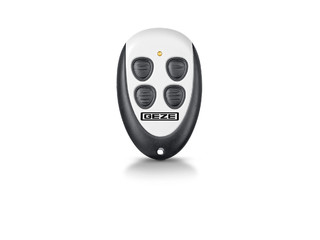

WTH-4 remote control
