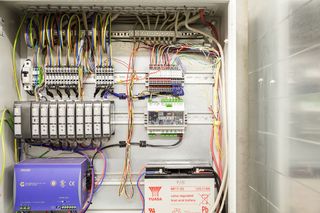

MBZ 300 Smoke and heat extraction control panel for smoke and heat extraction drives with a total current consumption of 8 A to 72 A
- Modular design to allow flexible adaptation to project-specific requirements
- Convenient extension by clicking on other modules in a control unit
- Can be extended by alarm groups, ventilation groups and alarm lines as required
- Depiction of complex smoke and heat extraction scenarios
- Simple service and installation thanks to status display directly on the module
- Configuration software simplifies commissioning and configuration
- Wind direction dependent activation possible (SHEV according to EN 12101-2)
- Safety and reliability confirmed by VdS certification
Application Areas
- Small to large and networked smoke and heat extraction systems
- Control of electromotive 24 V drives for smoke and heat extraction in the event of a fire
- Control of a controlled natural ventilation

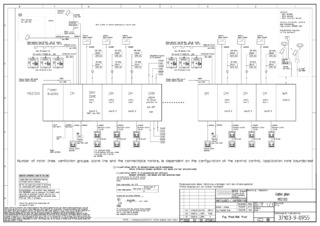

Technical data
| MBZ 300 | |
| Material | Sheeting |
| Colour | grey RAL 7035 |
| IP rating | IP30 |
| Service temperature | -5 - 40 °C |
| Operating voltage | 230 V AC |
| Power consumption (max.) | 1440 W |
| Connection cross-section / mains | 2.5 mm² |
| Output voltage | 24 V DC +/-15% |
| Residual ripple | 2 % |
| Output current (max.) | 72 A |
| Duty rating with maximum output current | 30 % |
| Motor cable wire size | 10 mm² |
| Battery capacity | 38 Ah |
| Networking of several control units | connection with optional CAN Bus modules |
| Signal outputs available | 1 status contact per CM/SM, 6 signal contacts per ERM for which parameters can be set |
| Parameter setting of control units | via USB interface an PC software |
| Standard conformity | EN 12101-10, ISO 21927-9 |
| Approvals | VdS |
