MBZ 300

MBZ 300 N8 SHEV control panel for smoke and heat extraction drives with a total power consumption of 8 A

SHEV control panel MBZ 300 N8 The N8 variant of the MBZ 300 modular bus control panel is impressive due to its particularly compact housing. This makes it the right choice for small- and medium-sized buildings and staircases. Thanks to its modular design, the configuration can be customised and extended.
  • Modular design to allow flexible adaptation to project-specific requirements
  • Convenient extension by clicking on another module in a control unit
  • Simple service and installation thanks to status display directly on the module
  • Configuration software simplifies commissioning and configuration
  • Available with pre-wired rail-mount terminal blocks for quick installation
  • Safety and reliability confirmed by VdS certification
Contact us

MBZ 300 N8

Application Areas

  • Connection options for small smoke and heat extraction solutions
  • For smoke and heat extraction system drives with a total power consumption of 8 A
  • Control of electromotive 24 V drives for smoke and heat extraction in the event of a fire
  • Control of a controlled natural ventilation

Technical data

MBZ 300 N8
Dimensions 300 x 400 x 200 mm
Width 300 mm
Height 400 mm
Depth 200 mm
Material Sheeting
Colour grey RAL 7035
IP rating IP30
Service temperature -5 - 40 °C
Operating voltage 230 V AC
Power consumption (max.) 240 W
Connection cross-section / mains 2.5 mm²
Output voltage 24 V DC +/-15%
Residual ripple 2 %
Output current (max.) 8 A
Duty rating with maximum output current 30 %
Motor cable wire size 4 mm²
Battery capacity 7 Ah
Alarm groups 1
Vent groups 1 Stk.
Networking of several control units connection with optional CAN Bus modules
Signal outputs available 1 status contact per CM/SM, 6 signal contacts per ERM for which parameters can be set
Parameter setting of control units via USB interface an PC software
Standard conformity EN 12101-10, ISO 21927-9
Approvals VdS

Downloads

SHEV control panel MBZ 300 N8 Product shot (1080660)
LABELLING OBLIGATION:  © GEZE GmbH
MBZ 300 N8 * Product data sheet EN
User manual EN (787079)
User manual EN (786287)
User manual EN (1589163)
Installation instructions EN (785264)

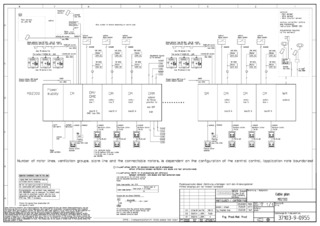

Cable plan EN (785566)
MBZ 300
(.dwg | 389 KB)
Certificate DE EN (784931)
Certificate DE EN (1429100)
MBZ 300 N8
(.doc | 99 KB)
Product brochure EN (491321)
Product brochure EN (535819)
Declarations of performance BG CS DA DE EL EN ES ET FI FR GE HR HU IT LT LV NL PL PT RO SK SL SQ SR SV (786406)
Environmental declaration EN (787282)

Variants & Accessories

GC 401 RS + 402 WVS - Wind and rain sensor set
Accessories

GC 401 RS + 402 WVS set

Rain and wind sensor set for use with the MBZ 300 control panel

Product details
Rain sensor GC 401 RS
Accessories

GC 401 RS

Rain sensor for use with the MBZ 300 control panel

Product details
GC 402 WVS wind sensor
Accessories

GC 402 WVS

Wind speed sensor for use with the MBZ 300 control panel

Product details
