RWA K 600 F Retractable arm drive for installation on windows

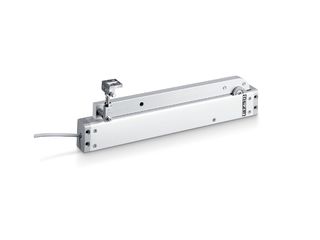

RWA K 600 F Retractable arm drive Retractable arm drive is designed for mounting on windows.
  • 90° window opening in less than 60 seconds
  • Powerful drive with high torque
  • Connector cable easy to replace by means of plug
  • Integrated status contact for feedback signals
  • Integrated synchronous module that can operate a max. of two drives without external control unit
  • Tested as a natural smoke and heat exhaust ventilation device (SHEV) in accordance with EN 12101-2
Contact us

RWA K 600 F

Application Areas

  • Smoke and heat extraction and natural ventilation (24 V)
  • Inward opening windows with bottom-, top- and side-hung leaves
  • Installation on wooden, PVC or metal windows
  • Frame installation

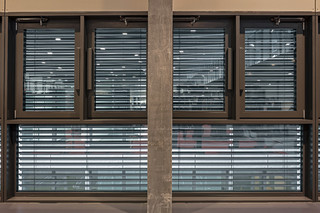

Installation situations in reference objects and videos

Exterior view of Montreux railway station Exterior view of Montreux railway station

Exterior view of Montreux railway station

Exterior view of Montreux railway station © Lorenz Frey / GEZE GmbH

Exterior view of Montreux railway station Exterior view of Montreux railway station

Exterior view of Montreux railway station

Exterior view of Montreux railway station © Lorenz Frey / GEZE GmbH

Exterior view of Montreux railway station Exterior view of Montreux railway station

Exterior view of Montreux railway station

Exterior view of Montreux railway station © Lorenz Frey / GEZE GmbH

Exterior view of Montreux railway station Exterior view of Montreux railway station

Exterior view of Montreux railway station

Exterior view of Montreux railway station © Lorenz Frey / GEZE GmbH

Exterior view of Montreux railway station Exterior view of Montreux railway station

Exterior view of Montreux railway station

Exterior view of Montreux railway station © Lorenz Frey / GEZE GmbH

Retractable arm drive K 600 F at Montreux railway station Retractable arm drive for installation on windows

Retractable arm drive K 600 F at Montreux railway station

Retractable arm drive for installation on windows © Lorenz Frey / GEZE GmbH

Interior entrance to the travel agency at Montreux railway station Entrance to travel agency at Montreux railway station

Interior entrance to the travel agency at Montreux railway station

Entrance to travel agency at Montreux railway station © Lorenz Frey / GEZE GmbH

Inside Montreux Station Historical staircase Montreux railway station

Inside Montreux Station

Historical staircase Montreux railway station © Lorenz Frey / GEZE GmbH

Retractable arm drive K 600 F at Montreux railway station Retractable arm drive for installation on windows

Retractable arm drive K 600 F at Montreux railway station

Retractable arm drive for installation on windows © Lorenz Frey / GEZE GmbH

Inside Montreux Station Inside Montreux Station

Inside Montreux Station

Inside Montreux Station © Lorenz Frey / GEZE GmbH

Inside Montreux Station Historical staircase Montreux railway station

Inside Montreux Station

Historical staircase Montreux railway station © Lorenz Frey / GEZE GmbH

Inside Montreux Station Historical staircase Montreux railway station

Inside Montreux Station

Historical staircase Montreux railway station © Lorenz Frey / GEZE GmbH

Inside Montreux Station Historical staircase Montreux railway station

Inside Montreux Station

Historical staircase Montreux railway station © Lorenz Frey / GEZE GmbH

Inside Montreux Station Historical staircase Montreux railway station

Inside Montreux Station

Historical staircase Montreux railway station © Lorenz Frey / GEZE GmbH

Retractable arm drive K 600 F at Montreux railway station Retractable arm drive for installation on windows

Retractable arm drive K 600 F at Montreux railway station

Retractable arm drive for installation on windows © Lorenz Frey / GEZE GmbH

Montreux railway station Chain drive for large and heavy window elements that need large opening widths

Montreux railway station

Chain drive for large and heavy window elements that need large opening widths © Lorenz Frey / GEZE GmbH

Montreux railway station Historical staircase

Montreux railway station

Historical staircase © Lorenz Frey / GEZE GmbH

Montreux railway station Chain drive for large and heavy window elements that need large opening widths

Montreux railway station

Chain drive for large and heavy window elements that need large opening widths © Lorenz Frey / GEZE GmbH

Montreux railway station Chain drive for large and heavy window elements that need large opening widths

Montreux railway station

Chain drive for large and heavy window elements that need large opening widths © Lorenz Frey / GEZE GmbH

Powerchain chain drive at Montreux railway station Chain drive for large and heavy window elements that need large opening widths

Powerchain chain drive at Montreux railway station

Chain drive for large and heavy window elements that need large opening widths © Lorenz Frey / GEZE GmbH

Powerchain chain drive at Montreux railway station Chain drive for large and heavy window elements that need large opening widths

Powerchain chain drive at Montreux railway station

Chain drive for large and heavy window elements that need large opening widths © Lorenz Frey / GEZE GmbH

Powerchain chain drive at Montreux railway station Chain drive for large and heavy window elements that need large opening widths

Powerchain chain drive at Montreux railway station

Chain drive for large and heavy window elements that need large opening widths © Lorenz Frey / GEZE GmbH

Powerchain chain drive at Montreux railway station Chain drive for large and heavy window elements that need large opening widths

Powerchain chain drive at Montreux railway station

Chain drive for large and heavy window elements that need large opening widths © Lorenz Frey / GEZE GmbH

Flatscan W right Montreux railway station Flatscan W right Montreux railway station

Flatscan W right Montreux railway station

Flatscan W right Montreux railway station © Lorenz Frey / GEZE GmbH

Flatscan W left Montreux railway station Flatscan W left Montreux railway station

Flatscan W left Montreux railway station

Flatscan W left Montreux railway station © Lorenz Frey / GEZE GmbH

Retractable arm drive K 600 F at Montreux railway station Retractable arm drive for installation on windows

Retractable arm drive K 600 F at Montreux railway station

Retractable arm drive for installation on windows © Lorenz Frey / GEZE GmbH

Inside Montreux Station Inside the pharmacy at Montreux railway station

Inside Montreux Station

Inside the pharmacy at Montreux railway station © Lorenz Frey / GEZE GmbH

Powerchain chain drive at Montreux railway station Chain drive for large and heavy window elements that need large opening widths

Powerchain chain drive at Montreux railway station

Chain drive for large and heavy window elements that need large opening widths © Lorenz Frey / GEZE GmbH

Powerchain chain drive at Montreux railway station Chain drive for large and heavy window elements that need large opening widths

Powerchain chain drive at Montreux railway station

Chain drive for large and heavy window elements that need large opening widths © Lorenz Frey / GEZE GmbH

Montreux railway station Chain drive for large and heavy window elements that need large opening widths

Montreux railway station

Chain drive for large and heavy window elements that need large opening widths © Lorenz Frey / GEZE GmbH

Powerchain chain drive at Montreux railway station Chain drive for large and heavy window elements that need large opening widths

Powerchain chain drive at Montreux railway station

Chain drive for large and heavy window elements that need large opening widths © Lorenz Frey / GEZE GmbH

Powerchain chain drive at Montreux railway station Chain drive for large and heavy window elements that need large opening widths

Powerchain chain drive at Montreux railway station

Chain drive for large and heavy window elements that need large opening widths © Lorenz Frey / GEZE GmbH

Inside Montreux Station Historical staircase Montreux railway station

Inside Montreux Station

Historical staircase Montreux railway station © Lorenz Frey / GEZE GmbH

GEZE K 600 F retractable arm drive + locking drive

GEZE K 600 F retractable arm drive + locking drive

© Lorenz Frey / GEZE GmbH

Kettenantrieb Powerchain Bahnhof Montreux Kettenantrieb Powerchain mit IQ Bo Safety und Flatscan W rechts und Flatscan W links

Kettenantrieb Powerchain Bahnhof Montreux

Kettenantrieb Powerchain mit IQ Bo Safety und Flatscan W rechts und Flatscan W links © Lorenz Frey / GEZE GmbH

Klapphebelantrieb K 600 F Bahnhof Montreux Klapphebelantrieb zur Montage an Fenstern

Klapphebelantrieb K 600 F Bahnhof Montreux

Klapphebelantrieb zur Montage an Fenstern © Lorenz Frey / GEZE GmbH

Kettenantrieb Powerchain Bahnhof Montreux Kettenantrieb für große und schwere Fensterelemente, die große Öffnungsweiten erfordern

Kettenantrieb Powerchain Bahnhof Montreux

Kettenantrieb für große und schwere Fensterelemente, die große Öffnungsweiten erfordern © Lorenz Frey / GEZE GmbH

Technical data

RWA K 600 F
Dimensions 421 x 40 x 86 mm
Housing material Aluminum
Compressive force 600 N
Tensile force 600 N
Voltage at operation 24 V ± 25 %
Operating voltage 24 V DC
Current consumption 1.4 A
Residual ripple 20 %
Duty rating 30 %
Connector cable length 5 m
Special length of connector cable 10 m
Min. core cross section 0.5 mm²
Number of cores 5 cores
Service temperature -5 - 75 °C
IP rating IP32
protection rating III
Synchronising function Yes
Additional locking available Yes
Type of additional locking mechanism Locking drive
Type of stroke shortening Synchronising unit
End position cut-off extended Internal path sensor
End position cut-off retracted Internal path sensor
Overload cut-off Yes
SHEV tested Yes
Number synchronisation drive units 2
Bottom-hung window INWARD-opening frame installation Yes
Side-hung window INWARD-opening frame installation Yes
Top-hung window INWARD-opening frame installation Yes
