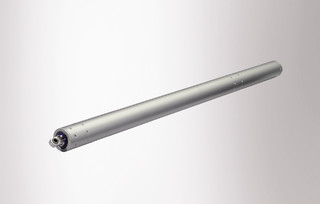

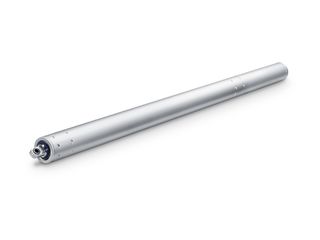

E 1500 S Spindle drive with high opening and closing speed

E 1500 S / E 3000
  • High pressure force and high speed
  • Max. opening width of 1000 mm achieved in less than 60 seconds
  • Robust and corrosion-resistant design with built-in end position damping
  • Syncro drive sets are available for leaf widths over 1200 mm
  • Aluminium housing for highest design demands
  • Extensive consoles allow versatile installation on main or secondary closing edges
Show more
  • Synchro set without external control device
  • SHEV tested according to EN 12101-2
Contact us

Spindle drive with high opening and closing speed

Application Areas

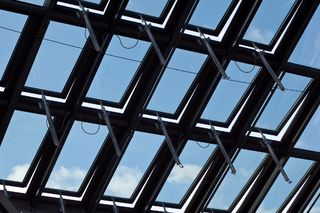

  • Heavy windows in the roof area
  • Natural ventilation, smoke and heat extraction system, natural smoke and heat extraction device (SHEV)
  • Use in the exhaust air system
  • Installation on wooden, plastic or metal windows

Product specifications

E 1500 S
Possible stroke heights 500 mm, 750 mm, 1000 mm
Opening speed RWA 16 mm/s
Opening speed ventilation 16 mm/s
Closing speed 16 mm/s
Tensile force (max.) 1500 N
Force of pressure (max.) 1500 N
Holding force (max.) 25000 N
Voltage at operation 24 V, ± 25 %
Operating voltage 24 V DC
Current consumption 4 A
Power consumption 72 W
Duty rating 30 %
Connection cable length 3 m
Cable dimensions 3 cores 1 mm²
Temperature range -5°C...+75°C
IP rating IP54
protection rating III
Syncro function Yes
Adjustable opening speed (ventilation) No
Additional locking available No
Type of additional locking Locking drive
Type of stroke shortening Factory setting
End position cut-off extended electronic
End position cut-off retracted electronic
Overload cut-off Yes
Complete opening within 60 s yes, up to 1000 mm stroke
SHEV tested Yes
SHEV additional information yes, up to 1000 mm stroke
Synchronisation (max.) 4 drives
Bottom-hung window INWARD-opening frame installation No
Bottom-hung window INWARD-opening leaf installation No
Bottom-hung window OUTWARD-opening frame installation No
Bottom-hung window OUTWARD-opening leaf installation No
Side-hung window INWARD-opening frame installation No
Side-hung window INWARD-opening door leaf installation No
Side-hung window OUTWARD-opening frame installation No
Side-hung window OUTWARD-opening door leaf installation No
Top-hung window INWARD-opening frame installation No
Top-hung window INWARD-opening leaf installation No
Top-hung window OUTWARD-opening frame installation No
Top-hung window OUTWARD-opening leaf installation No
OUTWARD-opening roof window Yes
Projected top-hung window OUTWARD-opening frame installation No
Parallel-opening window OUTWARD-opening frame installation No
