Manual fanlight openers
OL 95 Surface-mounted fanlight opener with an opening width of 220 mm
- Achieves the full opening width of 220 mm for all leaf heights
- The opening width can be adjusted
- Little space necessary thanks to flat design of the scissors
- Integrated leaf locking mechanism in the scissors ensures secure locking
- Unhinging inhibitor and lockable hand lever offer additional safety
- The additional locking mechanism increases safety and air-tightness
- Scissor unhooking by pressing the release button facilitates window cleaning from inside and outside
- Completely pre-mounted assembly groups facilitate installation
Application Areas
- Convenient daily ventilation for rooms and staircases
- Inward opening bottom-hung windows
- Can also be used on rectangular windows for inward-opening top-hung windows
- Special forms such as pitched and triangular windows possible
- Installation on wooden, plastic or aluminium windows
- Frame installation
Technical data
| OL 95 | |
| Length | 305 mm |
| Depth | 49 mm |
| Height | 16 mm |
| Opening width (max.) | 220 mm |
| Leaf width (min.) | 440 mm |
| Leaf height (min.) | 350 mm |
| Leaf weight (max.) | 60 kg |
| Fitting stroke | 54 mm |
| Adjustable opening width (stroke reduction) | Dependent |
| Leaf locking mechanism integrated in the scissors | Yes |
| Scissor unhooking by release button | Yes |
| Lockable | Yes |
| Unhinging inhibitor | Yes |
Downloads

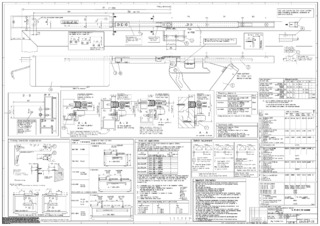

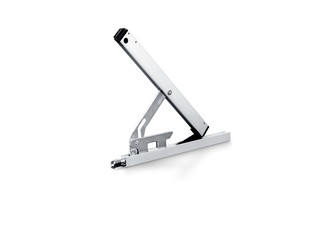

OL 95 open
LABELLING OBLIGATION:
© GEZE GmbH

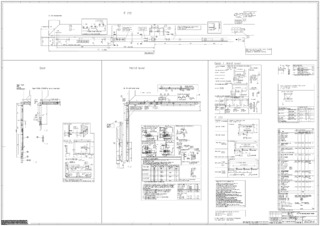

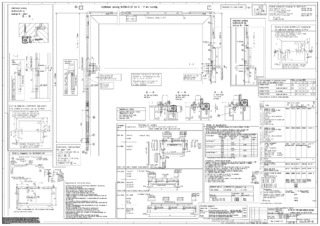

OL 90 N rectangle window (system)
LABELLING OBLIGATION:
© GEZE GmbH
