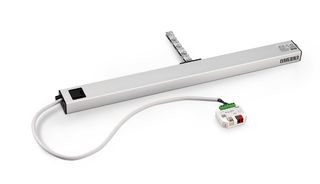

Slimchain Chain drive in an attractive design with numerous possible applications in 24 V version
- Slim and discreet appearance integrates perfectly into the façade design
- Continuously adjustable drive stroke and individual speeds for ventilation and smoke and heat extraction
- Available as special version - stroke, cable length, colour and alignment configurable to left hand/right hand door
- Synchronisation of max. four drives without external control unit
- DIP switches for changing the mode of operation (Solo and Syncro, master, slave)

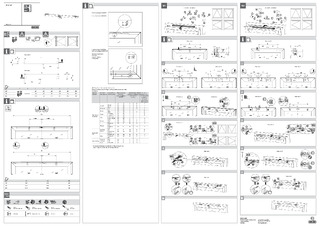

- Fast and easy installation with the Smart fix installation system
Chain drive in an attractive design with numerous possible applications in 24 V version
Application Areas
- Smoke and heat extraction system and natural ventilation (24 V) in the façade area
- Can be used in exhaust air and fresh air systems
- Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves
- Projected top hung and parallel opening windows
- Installation on wooden, PVC or metal windows
- Leaf, frame or integrated installation
- System solution in combination with the Power lock locking drive

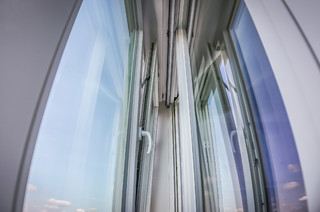

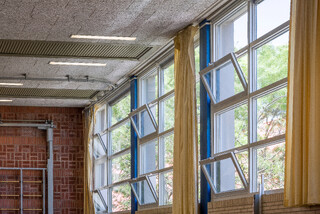

Installation situations in reference objects and videos
GEZE service case for IQ windowdrive series of GEZE product video
The service case provides everything for the on-site commissioning and testing of window drives from the IQ windowdrive series from GEZE, even without any power connection.
Assembly video GEZE IQ windowdrives synchro operation, Powerchain drives
With the service case, the window drives from the IQ windowdrives series can be quickly and easily put into service and tested without the need for an electrical connection.
Assembly video GEZE Slimchain window openers
The electric window opener GEZE Slimchain can be easily and quickly mounted with the GEZE smart fix installation system.
GEZE Slimchain and IQ box KNX
Automated and networked windows and doors system which is why you always experience a pleasant indoor climate with controlled natural ventilation. © GEZE GmbH
Chain drive Slimchain, Power lock locking drive
Chain drive in attractive design with numerous possible applications in 24 V version, installed in a residential building © GEZE GmbH
Chain drive Slimchain with LZR-i100 laser scanner installed in an office building
Chain drive Slimchain with LZR-i100 laser scanners in an attractive design with numerous possible applications © Jürgen Pollak / GEZE GmbH
Power lock and Slimchain
Slimchain chain drive in a pleasant design with many applications in combination with Power lock locking drive. © GEZE GmbH

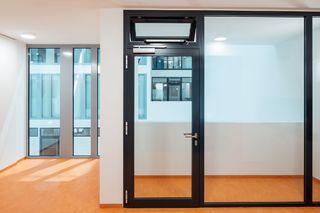

TS 5000 ECline with Slimchain in frame installation, installed in the town hall Leonberg
Overhead door closer with guide rail for barrier-free single leaf doors with opening assistance for easy opening and comfortable passing through of the door © Jürgen Pollak / GEZE GmbH

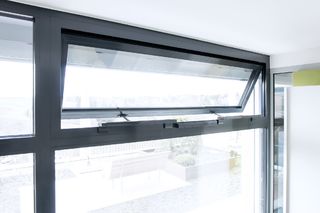

Chain drive Slimchain, installed in an office building
Smoke and heat extraction system and natural ventilation (24 V) in the façade area Can be used in the exhaust and fresh air system © GEZE GmbH

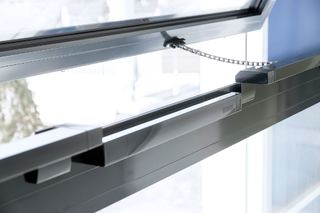

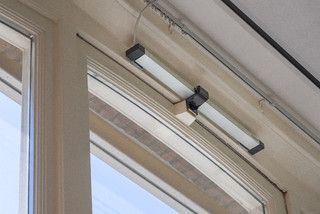

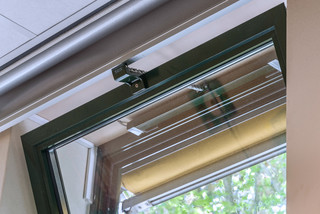

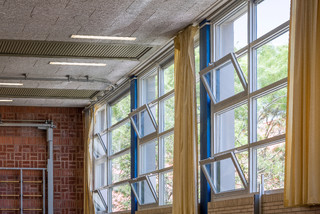

Chain drive Slimchain
Chain drive Slimchain in an office building © GEZE GmbH
Power lock and Slimchain
Slimchain chain drive in a pleasant design with many applications in combination with Power lock locking drive. © GEZE GmbH

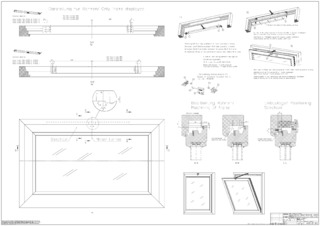

Product specifications

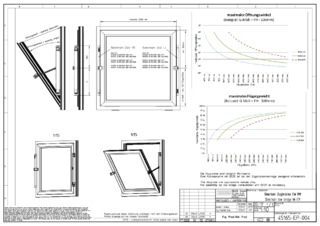

| Slimchain | |
| Dimensions (W x H x D) | Length x 25 x 44 mm |
| Length | Stroke 300: 560 mm, stroke 500: 660 mm, stroke 800: 810 mm (each with consoles) |
| Height | 25 mm |
| Depth | 44 mm |
| Space required on frame (min.) | Frame installation inward-opening: 40 mm, leaf installation inward-opening: 16/21 mm, frame installation outward-opening: 31 mm |
| Space requirement on leaf (min.) | Frame installation inward-opening: 40 mm, leaf installation inward-opening: 34/29 mm, frame installation outward-opening: 19 mm |
| Possible stroke heights | 300 mm, 500 mm, 800 mm |
| Opening speed RWA | 15 mm/s |
| Opening speed ventilation | 5 mm/s |
| Tensile force (max.) | 300 N |
| Force of pressure (max.) | 100 N (depending on stroke), see force-path diagram |
| Holding force (max.) | 2000 N |
| Leaf weight (max.) | 200 kg* |
| Overlap range | 0 - 23 mm (depending on application and brackets) |
| Operating voltage | 24 V, ± 25 % |
| Current consumption | 1.1 A |
| Current consumption | Ventilation (24 V): 0.9 A; RWA (18 V): 1.1 A |
| Power consumption (max.) | 22 W |
| Duty rating | 30 % |
| Special length of power supply cable | 5 m, 7.5 m |
| Cable dimensions | 4 x 0.75 mm² |
| Temperature range | -5 °C - 70 °C |
| IP rating / protection rating | IP40 / III |
| Tandem function | No |
| Syncro function | Yes |
| Adjustable opening speed (ventilation) | Yes |
| Additional locking available | Yes |
| Type of additional locking | Locking drive |
| Type of stroke shortening | Synchronising unit, Factory setting |
| End position cut-off extended | electronic, via internal path sensor |
| End position cut-off retracted | electronic via current consumption |
| Overload cut-off | Yes |
| Complete opening within 60 s | yes, including locking drive |
| SHEV tested | Yes |
| SHEV additional information | yes, including locking drive |
| Synchronisation (max.) | 4 drives |
| Bottom-hung window INWARD-opening frame installation | Yes |
| Bottom-hung window INWARD-opening leaf installation | Yes |
| Bottom-hung window OUTWARD-opening frame installation | Yes |
| Bottom-hung window OUTWARD-opening leaf installation | No |
| Side-hung window INWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening door leaf installation | Yes |
| Side-hung window OUTWARD-opening frame installation | Yes |
| Side-hung window OUTWARD-opening door leaf installation | No |
| Top-hung window INWARD-opening frame installation | Yes |
| Top-hung window INWARD-opening leaf installation | No |
| Top-hung window OUTWARD-opening frame installation | Yes |
| Top-hung window OUTWARD-opening leaf installation | No |
| OUTWARD-opening roof window | No |
| Projected top-hung window OUTWARD-opening frame installation | Yes |
| Parallel-opening window OUTWARD-opening frame installation | Yes |
Safety notice
Falling window leaves can be a considerable risk to life and limb of persons in the vicinity. Therefore, the use of GEZE safety scissor stays is mandatory when using GEZE drives on bottom-hung windows.
