TS 5000 R Overhead door closer with guide rail for single leaf doors of up to 1400 mm leaf width with electric hold-open device and smoke switch
- Closing force of EN2-6 with variable adjustment
- Operating voltage 230 V AC
- Can be used for right and left hand doors without conversion
- Electric hold-open device in the guide rail with hold-open area of 80°-130°
- Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
- Smoke switch with contamination indicator and adaption of the alarm threshold
- Additional smoke detectors can be fitted
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Door leaf installation hinge side
- Hold-open systems with integrated hold-open device
- Hold-open systems with integrated smoke switch
Installation situations in reference objects and videos

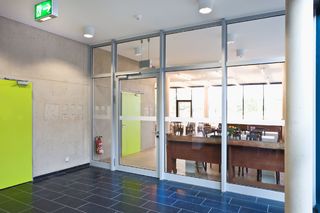

Magdeburg Cathedral
Fire protection door with GEZE door closer in the Magdeburg Cathedral. © Stefan Dauth / GEZE GmbH

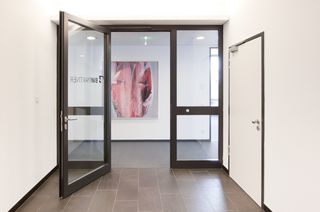

Door closer TS 3000 V und TS 5000 R in Häussler Global Office GmbH, Stuttgart.
The door closers enable optimum ease of access and perfectly fit into the overall environment. TS 5000 R as well as the TS 3000 V can also be attached to fire and smoke protection doors. © Dirk Wilhelmy / GEZE GmbH

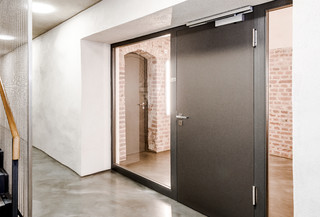

Overhead door closer with guide rail TS 5000 R with smoke control unit
Overhead door closer with guide rail TS 5000 R with smoke control unit, installed at the Alfter Academy of Art in Alfter near Bonn. Suitable for single leaf doors up to 1400 mm leaf width. © Lothar Wels / GEZE GmbH
Door closer TS 5000 R, installed at the Alfter School of Art, Alfter near Bonn.
The door closer allows ease of access and fits perfectly into the overall environment with its minimalist design. The TS 5000 R can also be mounted on fire and smoke protection doors due to its smoke switch. © Lothar Wels / GEZE GmbH
Door closer TS 5000 R at the Alfter School of Art, Bonn
The door closer allows ease of access and fits perfectly into the overall environment with its minimalist design. The TS 5000 R can also be mounted on fire and smoke protection doors due to its smoke switch. © Lothar Wels / GEZE GmbH

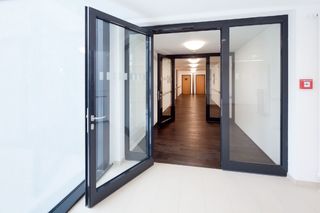

Door closer TS 5000 R, installed at the Augustinum in Stuttgart.
The door closer allows ease of access and fits perfectly into the overall environment with its minimalist design. The TS 5000 R can also be mounted on fire and smoke protection doors due to its smoke switch. © Dirk Wilhelmy / GEZE GmbH
TS 5000 door closer installation video
The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.

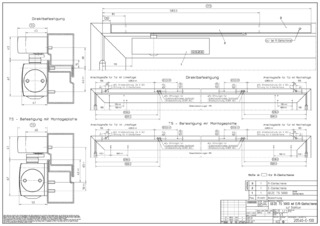

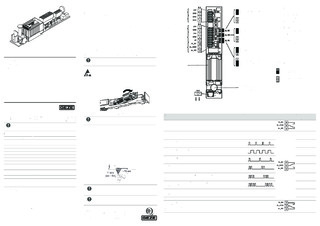

Technical data
| TS 5000 R | |
| Closing force in accordance with EN 1154 | EN 2 - 6 |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1400 mm |
| Leaf width (max.) | 1400 mm |
| Type of installation | Door leaf installation hinge side |
| Opening angle (max.) | 180 ° |
| Input voltage | 230 V AC |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Yes, hydraulically adjustable |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Hold-open function | Electrical |
| Hold-open range | 80 ° - 130 ° |
| Smoke switch integrated | Yes |
