TS 5000 L-ISM

Closer body TS 5000 L For overhead door closers with guide rail EN 2-6 on the opposite hinge side

GEZE TS 5000 Closer body Overhead door closer with guide rails for single leaf fire and smoke protection doors
  • Closing force can be variably adjusted from the front
  • Visual closing force display ensures correct setting
  • Closing seed can be adjusted from the front via valve
  • Latching action can be adjusted from the front via valve
  • Back check can be adjusted from the front via valve
  • Door closer, can be used for right and left hand doors
  • Minimal installation effort due to low number of individual parts and quick setting
Buy now

Closer body TS 5000 L

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • Door leaf installation opposite hinge side and transom installation hinge side

Installation situations in reference objects and videos

TS 5000 door closer installation video The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.

TS 5000 door closer installation video

The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.

Technical data

Closer body TS 5000 L
Closing force in accordance with EN 1154 EN 2 - 6
Leaf width (max.) 1400 mm
Type of installation Door leaf installation opposite hinge side, Transom installation hinge side
Opening angle (max.) 120 °
Identical design for DIN left and DIN right Yes
Standard conformity EN 1154:1996/A1:2002/AC:2006
Suitability for fire protection doors Yes
Length 287 mm
Width 47 mm
Height 60 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Safety valve againts overload Yes
Thermo-control valves Yes

Downloads

Product shot

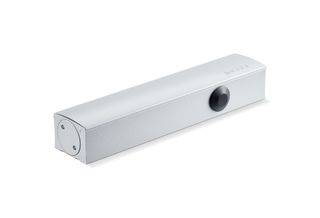

GEZE TS 5000 Closer body Product shot (675534)
LABELLING OBLIGATION:  © GEZE GmbH

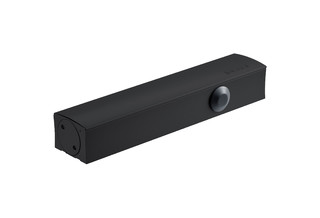

GEZE TS 5000 Closer Product shot (1802832)
LABELLING OBLIGATION:  © GEZE GmbH

Product data sheet

Closer body TS 5000 L Product data sheet EN
Download (.PDF | 466 KB)

Installation instructions

Installation instructions (769196)
Download (.PDF | 5 MB)

Certificate

Certificate EN (1846471)
Download (.PDF | 820 KB)
Certificate EN (759072)
Download (.PDF | 639 KB)

Supplementary sheet

Supplementary sheet BG CS DA DE EL EN ES ET FI FR HU IT LT LV MT NL PL PT RO RU SK SL SV ZH (759073)
Download (.PDF | 560 KB)
Supplementary sheet DE EN (768969)
Download (.PDF | 764 KB)

Tender texts

Declarations of performance

Declarations of performance BG DA DE EL EN ES ET FI FR KA HR HU IT LT LV NL NB PL PT RO SK SL SV (766565)
Download (.PDF | 776 KB)

Environmental declaration

Environmental declaration EN (760382)
Download (.PDF | 613 KB)
Environmental declaration EN (2544798)
Download (.PDF | 263 KB)

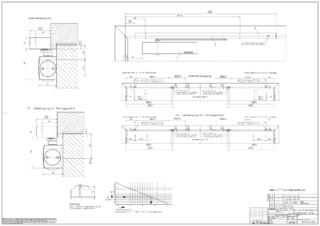

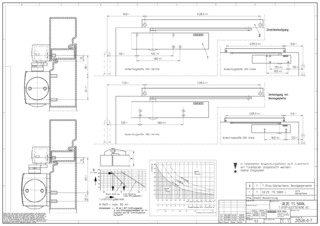

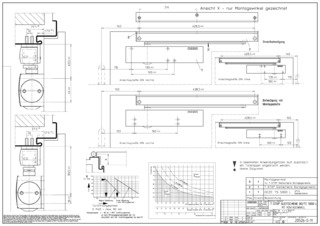

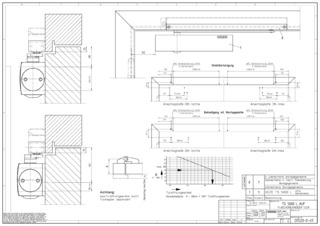

Installation drawing

Variants & Accessories

Mounting plate Door closer
Material

Mounting plate door closer

For TS 5000 and TS 4000 with hole pattern in accordance with DIN EN 1154 Supplement 1

Product details
Glass clamping shoe door closer
Material

Glass clamping shoe

For TS 5000/TS 4000

Product details
