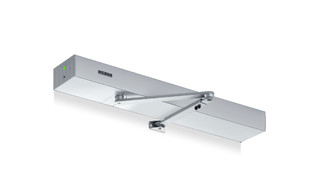

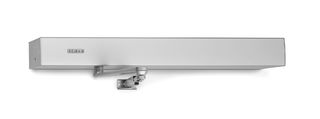

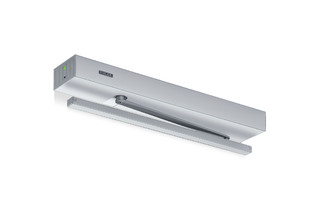

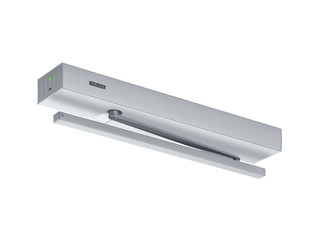

Powerturn 1-leaf swing door drive system Electromechanical swing door drive system for single leaf doors up to 600 kg
- Smart swing function for easy manual door opening
- With variable adjustment, door closer size can be adjusted from 4 to 7
- Opening and closing speed can be individually adjusted
- Mechanical latching action when operated without current, and electrical automatic unit latching action in regular operation, which accelerates the door shortly before it is closed
- The low-energy function opens and closes the door at a reduced speed, thereby meeting the highest safety standards
- Servo function for motorized support when manually opening the door
- Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
- Obstacle detection detects an object through contact and stops the opening or closing process
- Automatic reversing detects an obstacle and the door returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf

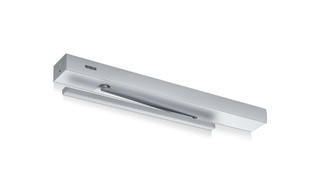

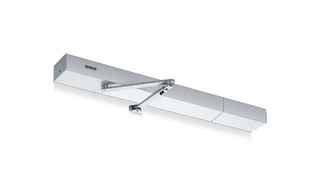

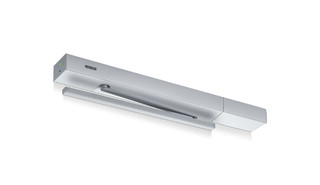

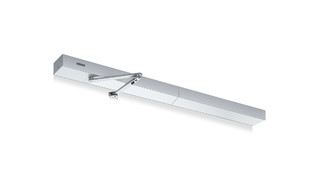

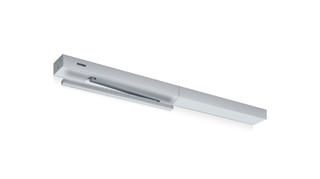

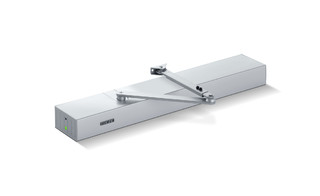

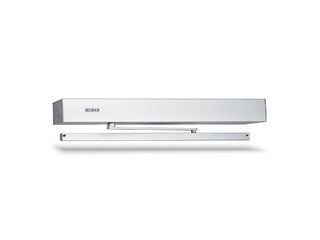

- Drive can be used with roller guide rail or link arm
- Optional radio reception board for wireless activation by radio transmitter
- Hold-open function can be activated by manually pulling the door leaf closed
- Reset of the hold-open system by manually opening the door leaf to an opening angle of 80° or changing the mode of operation
Application Areas
- Single-action, single leaf, right and left closing doors
- Single-action doors up to 1600 mm leaf width or 600 kg weight
- Minimum leaf width 800 mm
- Interior and exterior doors with high access frequency
- Door leaf installation and transom installation
Configuration Variants
- Powerturn
- Powerturn F
- Powerturn F/R

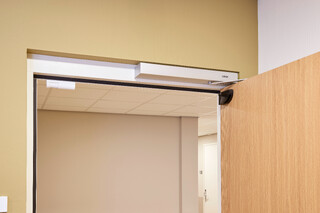

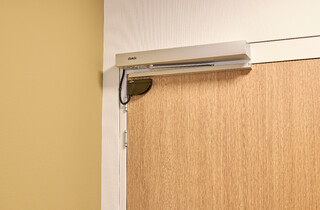

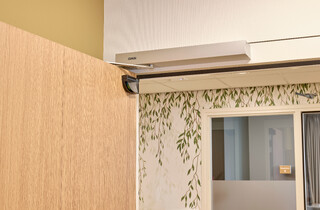

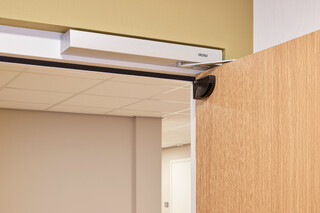

Installation situations in reference objects and videos
Installation video of the GEZE Powerturn IS mechanism swing door drive
The Powerturn swing door drive with integrated closing sequence control is ideal for double leaf fire protection doors and for escape and rescue route doors
GEZE Powerturn, swing door drive installation video
The Powerturn swing door stands out for its flexible installation. This makes it possible to complete different types of installation with only one drive variant.
GEZE Powerturn (swing door drive) sensor roller guide rail installation video
The GEZE sensor roller guide rail for the Powerturn swing door drive can be used for mounting even on very narrow door profiles.
Installation freedom - with the new GEZE Powerturn.
The clever GEZE assembly system of the Powerturn swing door drive not only reduces storage, but also facilitates the assembly process for installation companies.
Accessibility - with the new GEZE Powerturn.
The Powerturn swing door drive also opens large, heavy doors such as fire protection doors effortlessly in any situation. This is made possible by the unique smart swing feature that also meets demands for inclusion.
Our most powerful drive: GEZE Powerturn.
The Powerturn automatic swing door drives opens even large, heavy doors with a leaf weight up to 600 kilograms reliably and safely. The GEZE swing door drive is also the perfect solution for fire protection doors.

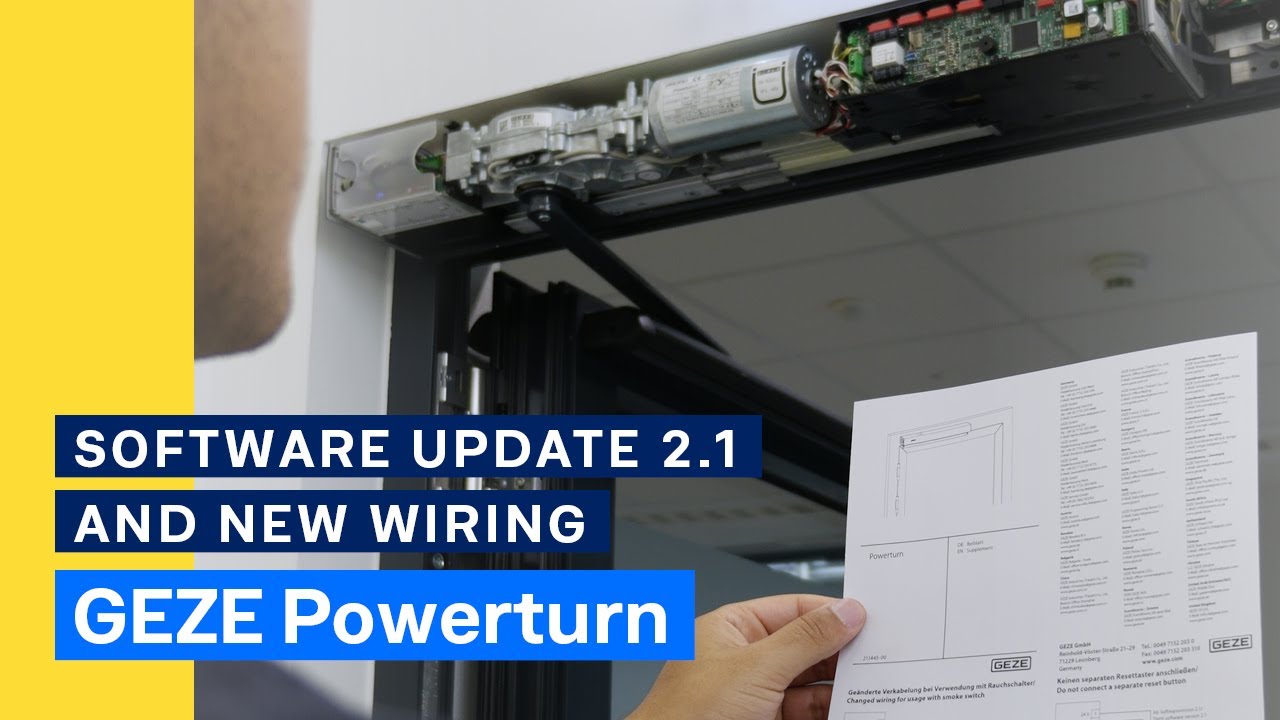

Powerturn Software Update 2.1
With the update to version 2.1, the Powerturn is a powerful swing door drive that combines all functions.

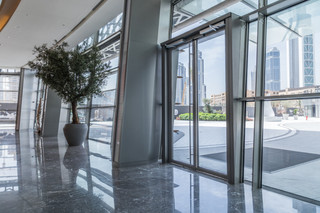

Opera House Dubai
Opera House Dubai, Powerturn © Nicolas Thome / GEZE GmbH

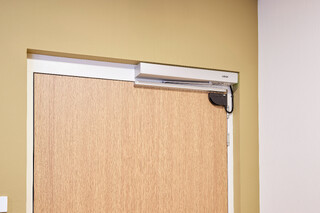

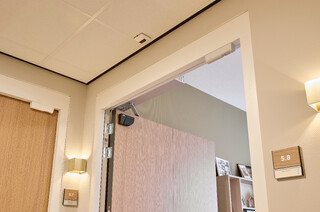

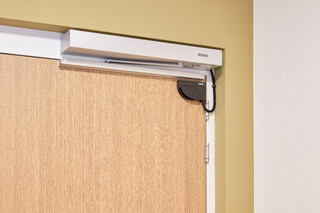

Powerturn Hoogerwaard Hoogerheide
Powerturn in room Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn in room Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn in room Hoogerwaard Hoogerheide © GEZE Benelux

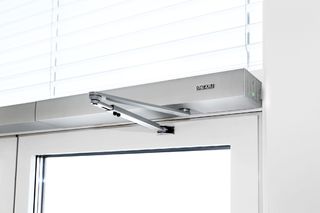

Powerturn Electromechanical swing door drive for doors up to 600 kg
Powerturn in the Danish Association for Persons with Disabilities, Taastrup, Denmark
Powerturn Hoogerwaard Hoogerheide
Powerturn in room Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn Hoogerwaard Hoogerheide © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn in room Hoogerwaard Hoogerheide © GEZE Benelux
Opera House Dubai
Opera House Dubai, Powerturn © Nicolas Thome / GEZE GmbH
Powerturn Hoogerwaard Hoogerheide
Hoogerwaard Hoogerheide with Powerturn © GEZE Benelux
Powerturn Hoogerwaard Hoogerheide
Powerturn in room Hoogerwaard Hoogerheide © GEZE Benelux
Technical data
| Powerturn 1-leaf swing door drive system | |
| Height | 70 mm |
| Depth | 130 mm |
| Length min. | 720 mm |
| Leaf weight (max.) 1-leaf | 600 kg |
| Distance centre door hinge-drive axis (min.-max.) 2-leaf, link arm | 1600 mm - 3200 mm |
| Distance centre door hinge-drive axis (min.-max.) 2-leaf, roller guide rail | 1600 mm - 3200 mm |
| Leaf width (min.-max.) | 800 mm - 1600 mm |
| Reveal depth (max.) | 560 mm |
| Drive type | Electromechanical |
| Opening angle (max.) | 136 ° |
| Spring pre-load | EN 4 - EN 7 |
| DIN left | Yes |
| DIN right | Yes |
| Transom installation opposite hinge side with link arm | Yes |
| Transom installation opposite hinge side with roller guide rail | Yes |
| Transom installation hinge side with roller guide rail | Yes |
| Door leaf installation opposite hinge side with roller guide rail | Yes |
| Door leaf installation hinge side with roller guide rail | Yes |
| Door leaf installation hinge side with link arm | Yes |
| Mechanical latching action | Yes |
| Electrical latching action | Yes |
| Disconnection from mains | Main switch in the drive |
| Activation delay (max.) | 10 s |
| Operating voltage | 230 V |
| Power rating | 200 W |
| Power supply for external consumers (24 V DC) | 1200 mA |
| Service temperature | -15 - 50 °C |
| IP rating | IP30 |
| Mode of operation | Automatic, Permanently open, Shop closing, Night, Off |
| Type of function | Fully automatic |
| Automatic function | Yes |
| Low-energy function | Yes |
| function smart swing | Yes |
| Servo function | Yes |
| Key function | Yes |
| Obstacle detection | Yes |
| Automatic reversing | Yes |
| Push & Go | adjustable |
| Operation | Programme switch DPS, MPS programme switch, Programme switch integrated in the drive |
| Parameter setting | GEZEconnects (PC + Bluetooth), Service terminal ST 220, Programme switch DPS |
| CAN Bus interface optional | Yes |
| Standard conformity | DIN EN 16005 |
| Smoke switch integrated | Yes |
