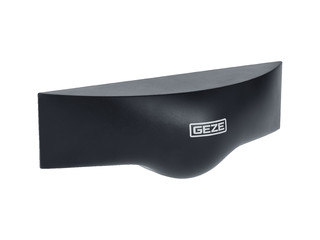

GC 302 Radar movement detector for the activation of automatic doors
- Convenient commissioning with pre-programmed settings
- Configuration possible via push buttons or remote control
- Clearly defined radar field (narrow or wide field) with reliable detection
- Integrated motion tracking also records slow movements
- Movement direction detection and cross-traffic fade-out reduces energy consumption in the building
- Door opening impulse only triggered if needed
Application Areas
- Activation of automatic swing, sliding, folding, revolving and curved sliding doors
- Interior and exterior doors
Installation situations in reference objects and videos
!Slimdrive EMD-F/R-IS, Uni Schloss Mannheim!
!Slimdrive EMD-F/R-IS mit Laserscanner GC 342 und Radarmelder GC 302 an einer 2-flügeligen Tür an der Universität Schloss Mannheim! © Nico Walke / GEZE GmbH
Technical data
| GC 302 | |

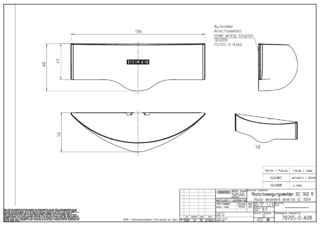

| Dimensions | 176 x 62 x 52 mm |
| Technology | Electromagnetic radar waves |
| Operating voltage | 12-36 V DC / 12-28 V AC |
| Switching voltage | 48 V |
| Switching current | 1 A |
| Operating current | 50 mA |
| IP rating | IP54 |
| Connection type | Plug-in screw terminal |
| Connector cable length | 5000 mm |
| Installation height (max.) | 4000 mm |
| Transmission frequency | 24.125 GHz |
| Weight | 150 g |
| Service temperature | -20 - 60 °C |
| Humidity | 0-90 % relative, non-condensing |
