Revo.PRIME

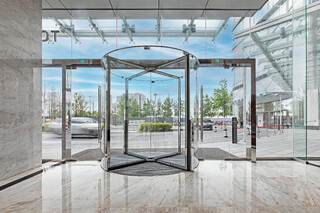

Revo.PRIME GG Automatic revolving door system for the realization of all-glass solutions
- Very quiet running, low-wear drive solution with a canopy height of at least 17 mm
- Drive and control technology are fully concealed in the floor
- Glass roof with reduced profiles provides additional transparency
- Reduced aluminium profiles with rounded edges create modern-looking optics
- Drum walls made of curved laminated safety glass (LSG)
- Door leaves made of fine-framed toughened safety glass (ESG)
- Two half shells made of heat-strengthened glass form the roof, which is held by stainless steel point fixings.
- Precise closing of the door leaves with the side walls
- Effective insulation effect against draughts, weather and noise
- Adjustable automatic speed setting, in line with the number of people passing through
- Manual operation of the door possible, e.g. to carry out cleaning work
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
Application Areas
- 3- and 4-leaf all-glass door systems
- Interior and exterior doors with high access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Inner diameter ranging from 1800 to 3000 mm possible
Technical data
| Revo.PRIME GG | |
| Manual operation | Yes |
| With speed limiter (optional) | Yes |
| With positioning device (optional) | Yes |
| Fully automatic operation | Yes |
| Inner diameter (min.) | 1800 mm |
| Inner diameter (max.) | 3000 mm |
| For 3-leaf door systems | Yes |
| For 4-leaf door systems | Yes |
| Clear passage height | 3000 mm |
| Canopy height (min.) | 17 mm |
| Side elements version | 16 mm GG, Special glass on request |
| Version of roof structure | Glass roof |
| Illumination | not possible with glass roof |
| Floor covering | Entrance mat, Entrance mat, according to the customer’s request |
| Hot-air curtain system | None |
| Night-time closer layout | Outside |
| Night-time closer type | Manual |
| Night-time closer design | 10 mm LSG |
| Lock | Manual |
| Door handles horizontal or vertical | Yes |
| Floor ring | Yes |
| Underfloor operator | Yes |
| Push pad | Yes |
| Standard conformity | EN 16005 |
