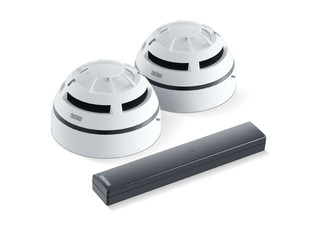

Wireless KIT FA GC 170 Set comprising GC 171 wireless module and GC 172 wireless ceiling-mounted smoke detector
- No cable connection needed between lintel-mounted detector and ceiling-mounted detector or manual trigger switch
- Simple coupling of the wireless components
- Mixed installation (wireless/wired) possible
- Low servicing costs due to long battery life of eight years
Application Areas
- Installation in listed buildings without structural changes (cable routing)
- Retrofitting or extension of existing systems
Installation situations in reference objects and videos
EN | Fire protection | RSZ 7 + FA GC 170
// RSZ 7 The new RSZ 7 smoke switch control unit has an adjustable telescopic function and is therefore a flexible solution for early detection of fires even in unfavourable lintel situations, for example where there is little room left over the smoke chamber. // FA GC 170 The GEZE FA GC 170 wireless extension connects the ceiling-mounted detector and manual trigger switch wirelessly with the lintel-mounted detector of GEZE hold-open systems.
GEZE | FA GC 170 wireless extension | Configuration

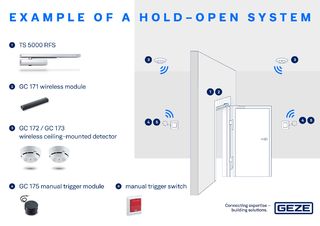

The GC 171 wireless module makes it possible to connect components for hold-open systems such as ceiling-mounted fire detectors and manual trigger switches wirelessly. This means that no separate cables need to be connected to these components. Teach-in is demonstrated with the GC 171 wireless module, a GC 172 wireless ceiling-mounted smoke detector and a GC 175 wireless input module for a manual trigger switch.
FA GC 170 - Wireless extension
The new GEZE wireless kit allows you to wirelessly connect the ceiling-mounted detectors and the manual trigger switch to the lintel-mounted detector on all GEZE hold-open systems. It's easy to retrofit. Because separate cable-laying is no longer needed. This makes planning much easier, in particular in listed buildings. © Annika Feuss / GEZE GmbH
FA GC 170 wireless extension
The new GEZE wireless kit allows you to connect the ceiling-mounted detectors and manual trigger switch to the lintel-mounted detector on all GEZE hold-open systems wirelessly. It is easy to retrofit, since it does not require the installation of a separate line. This makes planning much easier, in particular in buildings subject to historical preservation requirements. © Annika Feuss / GEZE GmbH
Magdeburg Cathedral
Wireless extensions for GEZE hold-open systems © Stefan Dauth / GEZE GmbH
Technical data
| Wireless KIT FA GC 170 | |
| Area of application | Inside |
