Connectivity possible for door control units - TZ 320 Series

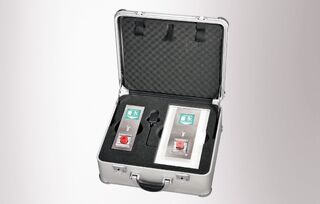

TZ 320 S AP Door control unit for controlling escape route doors with key switch

  • Flat impact cover enables fast and safe activation of the illuminated emergency push button in panic situations
  • Coloured connectors facilitate electrical connection
  • Three freely configurable inputs and two freely configurable outputs offer numerous possibilities for additional components
  • Number of inputs and outputs can be expanded using the IO 420 interface module or the KL 220 clamping box
  • Integrated key switch enables authorised passing through the emergency exit
Contact us

TZ 320 S AP

Application Areas

  • EltVTR-compliant protection of an emergency exit against unauthorised access
  • Can be used on single and double leaf doors
  • Connectivity via bus enables e.g. interlocking door system control, forwarding of alarms, connection to building management system
  • Can be combined with motor locks and swing door drives
  • Realisation of a bidirectional emergency exit
  • Surface-mounted installation allows for simple subsequent installation on the door

Installation situations in reference objects and videos

TZ 320 emergency exit control in Olgahospital Deployment of the TZ 320 emergency exit control at the Olgahospital, Stuttgart.

TZ 320 emergency exit control in Olgahospital

Deployment of the TZ 320 emergency exit control at the Olgahospital, Stuttgart. © Jürgen Pollak / GEZE GmbH

Technical data

TZ 320 S AP
Width 77 mm
Height 197 mm
Depth 88 mm
Type of installation Surface-mounted
Service temperature -10 - 55 °C
IP rating IP30
Operating voltage 24 V DC
Current consumption 100 mA
Supply voltage 24 V DC
Contact rating 30 V / 1 A
Sabotage contact Yes
Number of inputs 3 Stk.
Number of outputs 2 Stk.
Emergency push button Yes
Visual display yes
Volume 75 db
Type of cylinder Euro profile half cylinder
With ribbon cable Yes
Parameter setting Service terminal ST 220
Conforms to the EltVTR (guidelines for electronic locking systems) Yes

Downloads

Emergency exit control TZ 320 at Vitra House at Vitra House, Weil am Rhein.

LABELLING OBLIGATION:  © Oliver Look / GEZE GmbH

Installation situation (46491)
Emergency exit control TZ 320 at Vitra House, Weil am Rhein.

LABELLING OBLIGATION:  © Oliver Look / GEZE GmbH

Installation situation (47421)

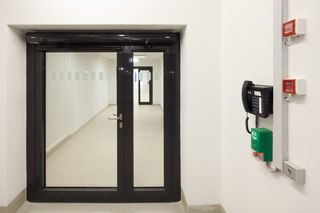

Swing door drive TSA 160 NT F-IS, GC334 sensor strip and the door control unit RWS TZ320 SN surface mounting

LABELLING OBLIGATION:  © Dirk Wilhelmy / GEZE GmbH

Installation situation (44558)

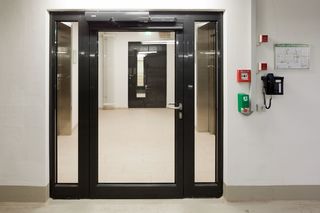

Swing door drive TSA 160 NT F-IS, GC334 sensor strip and the RWS TZ320 SN AP door control unit

LABELLING OBLIGATION:  © Dirk Wilhelmy / GEZE GmbH

Installation situation (44459)

Variants & Accessories

GEZE KL 220
Accessories

KL 220 AP

Terminal box for extending the number of analogue inputs and outputs for a TZ 32x

Product details
Relay board RP 220
Accessories

RP 220 relay board

Relay board for universal use for the generation and switching of potential-free contacts

Product details
Key switch SCT 220 UP
Accessories

SCT 220 UP

Key switch for authorised activation and for changing the mode of operation of automatic doors, flush-mounted

Product details
