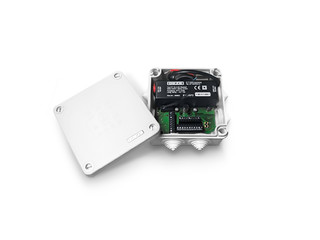

KL 220 AP Terminal box for extending the number of analogue inputs and outputs for a TZ 32x
- For convenient connection to a TZ 32x door control unit via RS485
- High IP protection guarantees reliable function even in a demanding environment
Application Areas
- For extending the connection possibilities to a GEZE TZ 32x by configurable inputs and outputs
- Simple installation thanks to surface-mounted design e.g. in a suspended ceiling
- Separate installation makes convenient cabling of an emergency exit system with comprehensive peripheral equipment possible
Technical data
KL 220 AP | |
Width | 113 mm |
Height | 113 mm |
Depth | 58 mm |
Service temperature | -10 - 50 °C |
IP rating | IP54 |
Operating voltage | 24 V DC |
Current consumption | 80 mA |
Supply voltage | 230 V |
Power supply for external consumers (24 V DC) | 600 mA |
Sabotage contact | Yes |
Number of inputs | 4 Stk. |
Number of outputs | 6 Stk. |
