E 170 230 V

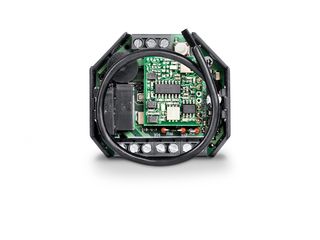

WRM-230 Receiving module for activating window drives with 230 V DC
- Encrypted communication via rolling code with up to 74 trillion code combinations
- Simple teach-in via learn button with acoustic feedback
- Up to 85 radio transmitters can be taught
- Operating voltage 230 V AC
Application Areas
- Activation of GEZE 230 V window drives via the GEZE wireless program
- Flush-mounted installation
Technical data
| WRM-230 | |
| Dimensions | 52 x 47 x 23 mm |
| Output | Electrical relay |
| IP rating | IP20 |
| Type of installation | Flush-mounted installation |
| Connection type | Screw terminal |
| Transmission frequency | 433.93 Mhz |
| Service temperature | 0 - 50 °C |
Downloads
WRM 230 receiving module
