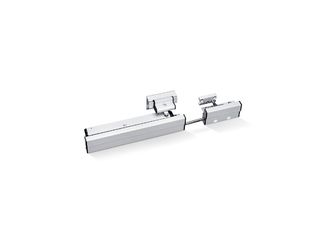

Scissors OL 90 N top-hung outward opening Scissors OL 90 N top-hung outward-opening with leaf bracket
- Achieves the full opening width of 170 mm for all leaf heights
- With burglar-resistant locking (SKG-certified)
- Little space necessary thanks to flat design of the scissors
- Locking in the scissors guarantees a safe leaf locking mechanism
- Scissor unhooking by pressing the release button facilitates window cleaning from inside and outside
- Completely pre-mounted assembly groups facilitate installation
Application Areas
- Ventilation of rooms and stairways
- For outward-opening rectangular windows with top-hung leaves
- Installation on wooden, PVC or metal windows
- Leaf installation
Installation situations in reference objects and videos
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N with hand lever, Academy of Fine Arts Alfter
Surface mounted Slimline skylight opener with an opening width of 170 mm © Lothar Wels / GEZE GmbH
OL 90 N with hand lever, Academy of Fine Arts Alfter
Surface mounted Slimline skylight opener with an opening width of 170 mm © Lothar Wels / GEZE GmbH
OL 90 N, Hotel Amano
Surface mounted Slimline skylight opener with an opening width of 170 mm © Stefan Dauth / GEZE GmbH
TS 5000 + OL 90 N post-frame transmission, Augustinum
TS 5000: Fire and smoke protection doors + OL 90 N: Inward opening bottom-hung windows, post-frame transmission © Dirk Wilhelmy / GEZE GmbH
OL 90 N with hand lever
Surface mounted Slimline skylight opener with an opening width of 170 mm © Jürgen Pollak / GEZE GmbH
Technical data
| Scissors OL 90 N top-hung outward opening | |
| Opening width (max.) | 170 mm |
| Leaf width (min.) | 600 mm |
| Leaf height (min.) | 370 mm |
| Leaf weight (max.) | 80 kg |
| Adjustable opening width (stroke reduction) | Yes |
