Boxer 1-leaf

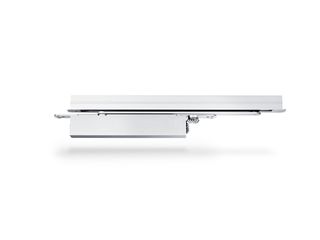

Boxer E Integrated door closer for single leaf doors with a leaf width of up to 1400 mm with electric hold-open device
- Closing force with variable adjustment of EN2-4 or EN3-6
- Can be used for right and left hand doors without conversion
- Door closer is embedded in the door leaf and frame and fulfils the highest design demands
- Electric hold-open device in the guide rail with hold-open area 80°-120°
- Retention force of the hold-open unit is gradually adjustable

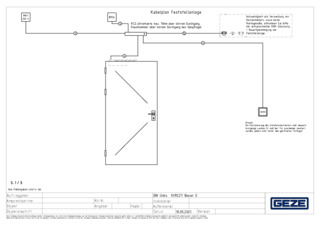

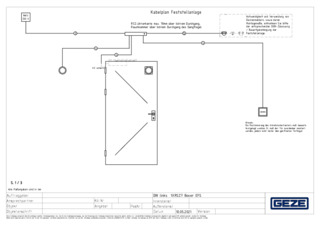

- Smoke switch control unit can be connected, whose signal makes the door close automatically in the event of a fire
- Integrated back check, slows down doors that are thrown open forcefully
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- All functions can be adjusted in the installed state
Application Areas
- Fire and smoke protection doors, proof of suitability for the door required
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width, for door weight up to 180 kg
- For door leaf thicknesses from 40 mm

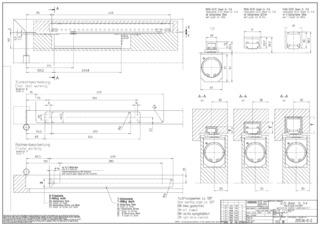

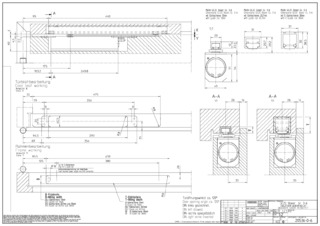

- Integrated installation
- Hold-open systems with integrated hold-open device
Technical data
Boxer E | |
Closing force in accordance with EN 1154 | EN 2 - 6 |
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1400 mm |
Leaf width (max.) | 1400 mm |
Leaf weight (max.) | 180 kg |
Type of installation | Concealed |
Opening angle (max.) | 120 ° |
Input voltage | 24 V DC |
Suitability for fire protection doors | Yes |
Closing force adjustable | Yes, stepless |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via valve |
Back check integrated | Yes, hydraulically adjustable |
Position of closing force adjustment | Top |
Hold-open function | Electrical |
Hold-open range | 80 ° - 120 ° |
Downloads
Door closer Boxer E
