Boxer 1-leaf

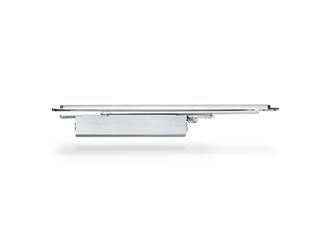

Boxer Integrated door closer for single leaf doors with a leaf width of up to 1400 mm
- Closing force with variable adjustment of EN 2-4 or EN 3-6
- Can be used for right and left hand doors without conversion
- Door closer is embedded in the door leaf and frame and fulfils the highest design demands
- Integrated back check, slows down doors that are thrown open forcefully
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
Application Areas
- Fire and smoke protection doors, proof of suitability for the door required
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width, for door weight up to 180 kg
- For door leaf thicknesses from 40 mm
- Integrated installation
Installation situations in reference objects and videos
Door closer Boxer on toilet door in the Stadtquartier (urban district) Killesberghöhe in Stuttgart.
Integrated door closer for single leaf doors with a leaf width of up to 1400 mm. The door closer is embedded in the door leaf and the frame and meets the highest design demands. Hydraulic latching action which accelerates the door shortly before reaching the closed position. © Nikolaus Grünwald / GEZE GmbH
Technical data
| Boxer | |
| Closing force in accordance with EN 1154 | EN 2 - 6 |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
| Leaf width (max.) | 1400 mm |
| Leaf weight (max.) | 180 kg |
| Type of installation | Concealed |
| Opening angle (max.) | 120 ° |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Yes, hydraulically adjustable |
| Position of closing force adjustment | Top |
| Hold-open function | Optional |
Downloads
GEZE Boxer integrated door closer
