TS 5000 ISM
Hold-open magnet flexible 185 mm For wall or ceiling installation with stand pipe 185 mm
- High retention force of 490N
- Concealed line-feed and robust design
- For flexible shortening
- Magnetic head can be turned through 90°
- Integrated reverse polarity protection
Application Areas
- Use for hold-open angles up to 180°, ideal for exact holding open
- Use in harsh environments such as industrial buildings
- Places of public assembly and highly frequented sports venues
- Approved for GEZE hold-open systems
- Wall, ceiling or floor installation
Technical data
| Hold-open magnet flexible 185 mm | |
| Dimensions | 90 x 80 x 185 mm |
| IP rating | IP65 Magnet; IP20 connection |
| Type of installation | Wall, Ceiling, Floor |
| Line-feed | Below |
| Area of application | Inside |
Downloads

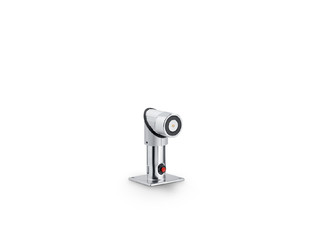

Product shot
Hold-open magnet wall installation
LABELLING OBLIGATION:
© GEZE GmbH
Wiring diagram
Tender texts
Flyer & folder
Declarations of performance
Product brochure

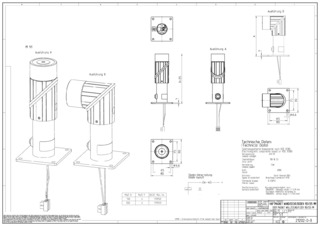

Installation drawing
Product data sheet
Variants & Accessories
