TS 5000 E-ISM/G

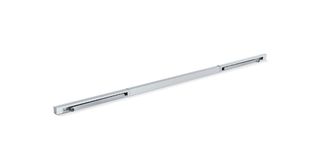

E-ISM/G guide rail TS 5000 continuous, with integrated closing sequence control, electric hold-open device on the active leaf, and levers

ISM guide rail TS 5000 extra length
  • Supply voltage 24 V DC
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • Height compensation of +/- 2 mm possible
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Vandalism protection through flexible Bowden cable
  • Horizontally adjustable in the installation position by 4 mm through elongated holes
Show more
  • With screwed slide block
Contact us

E-ISM/G guide rail TS 5000

Application Areas

  • Double leaf doors with closing sequence control
  • Hold-open systems with integrated hold-open device on the active leaf
  • Installation on hinge side
  • Right and left single-action doors
  • Symmetrical and asymmetrical division of door possible
  • Single-action doors with hinge clearance up to 2800 mm

Technical data

E-ISM/G guide rail TS 5000
Input voltage 24 V DC
Electrical power consumption 2.4 W
Duty rating 100 %
Residual ripple 20 %
IP rating IP43
Minimum hinge clearance 1300 mm
Minimum passive leaf width 400 mm
Standard conformity EN 1155, EN 1158
Length 2630 mm
Width 40 mm
Height 30 mm
opening restrictor upgradable Yes
Hold-open function Electrical
Hold-open device on the active leaf / passive leaf Yes / Optional
Hold-open function using hold-open magnets on the active / passive leaf Optional
Hold-open device can be overridden Yes
Hold-open range 80 ° - 130 °
Closing sequence control integrated Yes
Height correction possible Yes
Flexible opening restrictor Yes

Downloads

Variants & Accessories

Sliding block for opening restriction
Accessories

Flexible opening restrictor

For E and R guide rails, single and double leaf
