Guide rail 2-leaf

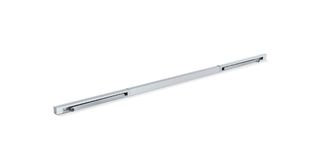

ISM guide rail BG TS 5000 With closing sequence control and levers
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Horizontally adjustable in the installation position by 4 mm through elongated holes
- With screwed slide block
Application Areas
- Double leaf doors with closing sequence control
- Installation on the opposite hinge side
- Right and left single-action doors
- Symmetrical and asymmetrical division of door possible
- Up to 2800 mm hinge clearance
- Minimum hinge clearance 1360 mm, minimum width of the passive leaf 380 mm
Technical data
ISM guide rail BG TS 5000 | |
Minimum hinge clearance | 1360 mm |
Minimum passive leaf width | 380 mm |
Standard conformity | EN 1158 |
Length | 2730 mm |
Width | 55 mm |
Height | 30 mm |
opening restrictor upgradable | Yes |
Closing sequence control integrated | Yes |
Height correction possible | Yes |
Flexible opening restrictor | Yes |
