TS 5000 L
Guide rail BG wall mounting TS 3/5000 L Guide rail for wall installation with lever, opposite hinge side
- With riveted slide block
Application Areas
- Single leaf doors
- Installation on the opposite hinge side
- Right and left single-action doors
- Lintel installation fixing to the top
Installation situations in reference objects and videos
GEZE TS 5000 L and guide rail BG lintel mounting TS 3/5000 L
The guide rail BG lintel mounting TS 3/5000 L offers the option of mounting directly in the lintel of a door without additional accessories such as a lintel bracket. © GEZE GmbH
Technical data
| Guide rail BG wall mounting TS 3/5000 L | |
| Length | 550 mm |
| Width | 30.5 mm |
| Height | 20.7 mm |
| opening restrictor upgradable | Yes |
| Hold-open function | Optional |
| Hold-open device can be overridden | Yes |
Downloads

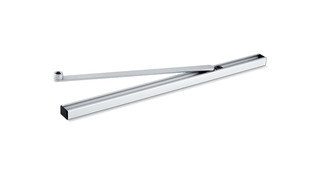

Product shot
Guide rail BG lintel mounting TS 3/5000 L
LABELLING OBLIGATION:
© GEZE GmbH

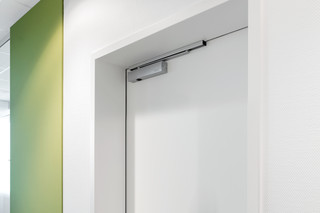

Installation situation
GEZE TS 5000 L and guide rail BG lintel mounting TS 3/5000 L
LABELLING OBLIGATION:
© GEZE GmbH
Product data sheet
Installation instructions
Supplementary sheet
Tender texts
Environmental declaration

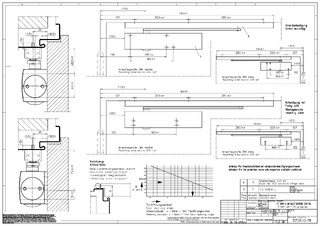

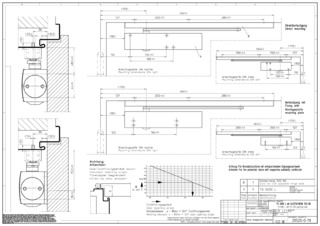

Installation drawing
