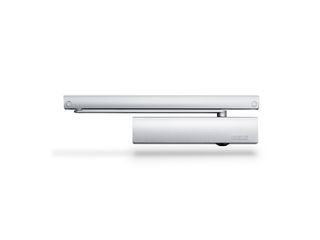

TS 5000 ECline Overhead door closer with guide rail for accessible single leaf doors of up to 1250 leaf width with opening assistance
- Closing force of EN3-5 with variable adjustment
- Barrier-free in accordance with DIN 18040 up to EN5 (1250 mm leaf width)
- Can be used for right and left hand doors without conversion
- Opening assistance for easy opening and comfortable passing of the door
- Opening assistance can be switched off for doors with wind load or pressure differences
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front and less installation time compared to standard systems
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1250 mm leaf width

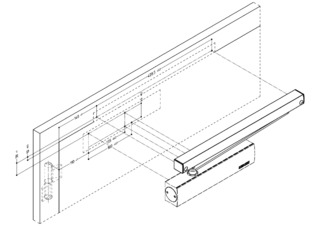

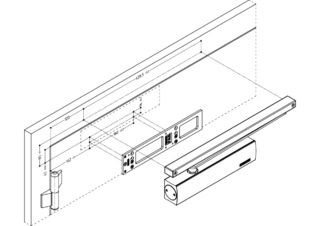

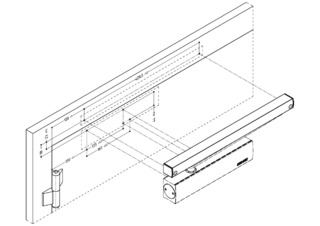

- Door leaf installation hinge side and transom installation opposite hinge side
- Access for all in accordance with DIN 18040 up to EN5
Installation situations in reference objects and videos

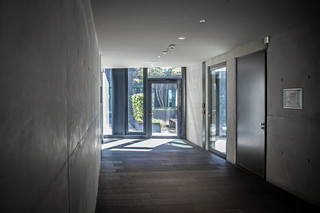

Door closer TS 5000 on an exterior door to the inner courtyard of the Kö-Bogen II
Whether installed on interior or exterior doors, the TS 5000 offers proven function & quality. Its timeless design is also available in all RAL colours. © Jürgen Biniasch / GEZE GmbH

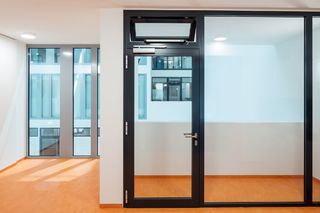

TS 5000 ECline with Slimchain in frame installation, installed in the Leonberg town hall
Overhead door closer with guide rail for barrier-free single leaf doors with opening assistance for easy opening and comfortable passing through the door © Jürgen Pollak / GEZE GmbH
TS 5000 door closer installation video
The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.
Discreet design for contemporary swing doors: the GEZE TS 5000 door closer
The TS 5000 reliably closes doors and integrates well into the architecture © Nicolas Thome / GEZE GmbH
Technical data
| TS 5000 ECline | |
| Closing force in accordance with EN 1154 | EN 3 - 5 |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1250 mm |
| Leaf width (max.) | 1250 mm |
| Type of installation | Door leaf installation hinge side, Transom installation opposite hinge side |
| Opening angle (max.) | 180 ° |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Yes, hydraulically adjustable |
| Integrated opening assistance | Yes |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Hold-open function | Optional |
