GC 335 Sensor strip with high safety standard for protecting automatic swing and revolving doors

GC 335 Sensor strip Sensor strip used for the protection of automatic swing doors in accordance with DIN 18650 under normal floor situations
  • Sensor strip with high safety standard to protect main and secondary closing edges
  • Detection area covers leaf widths up to max. 1400 mm
  • Inclination angle and scanning range can be adjusted mechanically
Contact us

GC 335

Application Areas

  • Protection of automatic swing and revolving doors
  • Interior and exterior doors
  • Doors along escape and rescue routes
  • Normal flooring

Technical data

GC 335
Dimensions 42 x 37 mm
Technology Active infrared beams
Switching voltage 30 V
Switching current 30 mA
Operating current 60 mA
IP rating IP52
Connection type Plug-in screw terminal
Connector cable length 1000 mm
Installation height (min.) 1500 mm
Installation height (max.) 2500 mm
Reaction time < 70 ms
Service temperature -10 - 50 °C
Humidity < 90% relative, non-condensing
Standard conformity DIN 18650, EN 16005

Downloads

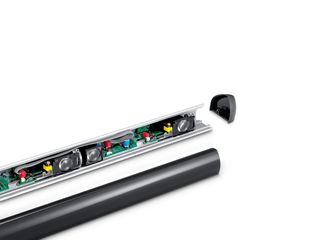

GC 335 Sensor strip Product shot (47359)
LABELLING OBLIGATION:  © GEZE GmbH
Operating room at Children's memorial health institute Installation situation (896854)
LABELLING OBLIGATION:  © H. Łukasz Janicki / GEZE Polska
Swing door at Children's Memorial Health Institute Installation situation (896902)
LABELLING OBLIGATION:  © H. Łukasz Janicki / GEZE Polska
Swing door at Children's Memorial Health Institute Installation situation (896903)
LABELLING OBLIGATION:  © H. Łukasz Janicki / GEZE Polska
GC 335 Product data sheet EN
Installation instructions EN (642351)
Certificate DE EN (642358)
Type examination certificate DE EN (642361)
Declaration of conformity DE EN FR (642357)
Product brochure EN (39167)
Product brochure EN (535819)

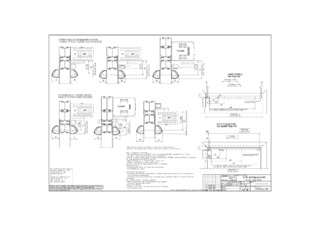

Installation drawing DE EN (642352)
Hole pattern GC 335
(.dwg | 583 KB)
Hole pattern GC 335 sensor strip
(.dxf | 2 MB)

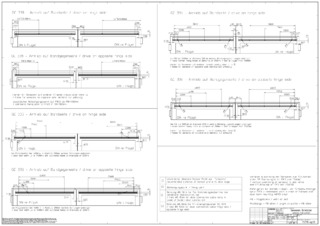

Installation drawing DE EN (739787)
Hole patterns GC 334 / GC335 / GC 338
(.dwg | 241 KB)
Hole patterns GC 334 / GC335 / GC 338
(.dxf | 870 KB)

Variants & Accessories

GC 335 Expansion kit
Parts

GC 335 extension kit

Accessory for the sensor strip

Product details
GC 335 Clip bearing
Parts

GC 335 clip bearing

Accessory for the sensor strip

Product details
