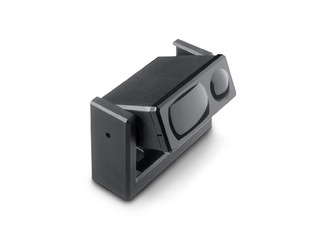

Active infrared detector
AIR 20 Active infrared light switch for monitoring the door handle of automatic swing doors
- Active infrared light sensor
- Scanning range variably adjustable from 1.2 - 2.2 m
Application Areas
- Monitoring of the door handle for activating automatic swing doors
- Presence detection of persons or objects in small areas
- Occupied checks in person and security interlocking door systems
Technical data
| AIR 20 | |
| Dimensions | 72 x 66 x 49 mm |
| Technology | Active infrared beams |
| Operating voltage | 12-30 V DC / 18-28 V AC |
| Switching voltage | 48 V |
| Switching current | 1 A |
| Operating current | 50 mA |
| IP rating | IP52 |
| Connection type | Plug-in screw terminal |
| Connector cable length | 5000 mm |
| Adjustability | 1.2 - 2.2 m |
| Installation height (min.) | 1200 mm |
| Installation height (max.) | 2200 mm |
| Light beam cross-section | 60 x 60 mm |
| Service temperature | -20 - 60 °C |
| Humidity | < 90% relative, non-condensing |
| Standard conformity | EN 60947-5-2 |
Downloads
AIR 20 active infrared light sensor
