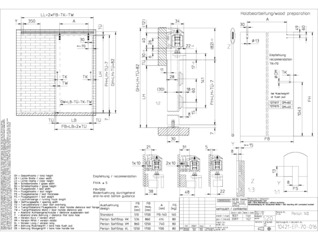

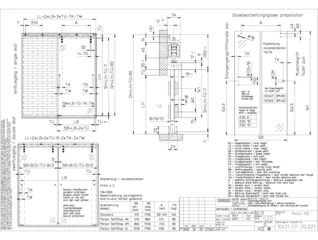

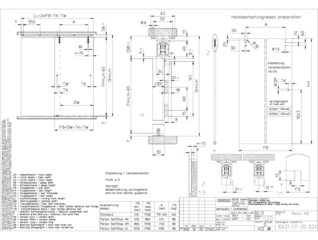

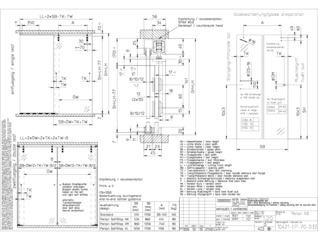

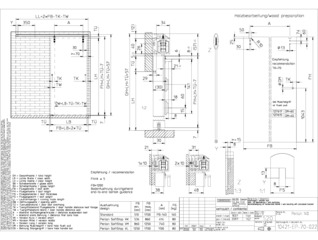

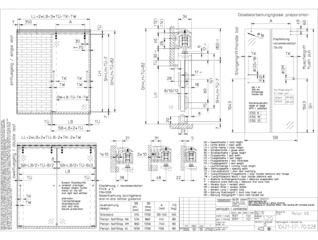

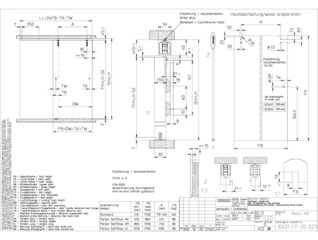

Perlan 140 wood wall installation

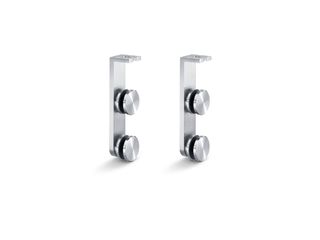

All-glass system stainless steel single point fixing set Stainless steel single point fixing for toughened safety glass panes
- Stainless steel single point fixing for connecting toughened safety glass panes to sliding door fittings
Application Areas
- Perlan sliding door fitting
- For toughened safety glass
- For glass thicknesses 10 and 12 mm
Technical data
All-glass system stainless steel single point fixing set | |
Leaf material | Glass, Metal, Wood |
Leaf weight (max.) | 140 kg |
Leaf weight (max.) with draw-in damper | 80 kg |
Corrosion protection class | 2 |
Glass thickness | 8 - 12 mm |
Colour | Stainless steel |
Downloads
Variants & Accessories
