Levolan
Levolan 120 with glass side panel Sliding door fitting for 120 kg glass leafs and fixed panel attachment
- Sliding door fitting for glass doors up to 120 kg leaf weight and with lateral fixed panel
- With damping on one or both sides, for doors up to 120 kg leaf weight so that the door is stopped gently and pulled autonomously into the end position
- Small floor and side profiles create a generous clearance gauge for fixed panels and glass sliding doors
- Fixed glass panels can be installed quickly and easily with rubber seals
- Modular fixed panel option as an "add-on" for the basic hardware
Application Areas
- For design-oriented interior sliding doors for living and office areas
- For all single- and multiple-leaf sliding doors
- Installation to the ceiling
- For attachment on the wall and ceiling (directly and concealed) as well as for glass installation
- Damped on one or both sides with Levolan 120 SoftStop
- Smooth running with Levolan 120 SoftStop makes it particularly well suited for doors in living and office spaces
Installation situations in reference objects and videos
Levolan 60 sliding door system, installed in a residential building
Sliding fitting for glass leaves weighing 60 kg and with one or damped on both sides for doors, so that the door is gently slowed down and independently dragged into the end position © Studio BE / GEZE GmbH
Technical data
| Levolan 120 with glass side panel | |
| Leaf material | Glass |
| Leaf weight (max.) | 120 kg |
| Number of leaves | 1-leaf, 2-leaf |
| Leaf width (min.) | 640 mm |
| Leaf width (max.) | 1440 mm |
| Leaf height (max.) | 3500 mm |
| Leaf thickness from | 10 mm |
| Leaf thickness to | 12 mm |
| Track geometry | straight |
| Type of installation | Wall, Ceiling |
| Side panel | Yes |
Downloads

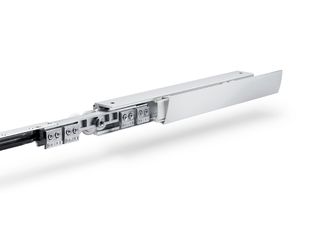

Product shot
Levolan 120 roller sliding fitting
LABELLING OBLIGATION:
© GEZE GmbH
Installation situation
Levolan 60 sliding door system, installed in a residential building
LABELLING OBLIGATION:
© Studio BE / GEZE GmbH
Tender texts
Installation instructions
Product brochure

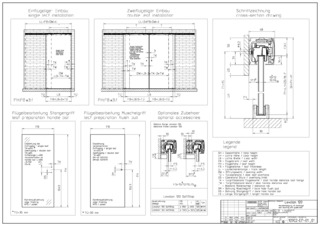

Installation drawing
Product data sheet
Variants & Accessories
