Levolan
Levolan 120 glass with fanlight Sliding door fitting for 120 kg glass leafs and fanlight attachment
- Sliding door fitting for glass doors up to 120 kg leaf weight and direct attachment to glass walls or fanlights
- With damping on one or both sides, for doors up to 120 kg leaf weight so that the door is stopped gently and pulled autonomously into the end position
- Small floor and side profiles create a generous clearance gauge for fixed panels and glass sliding doors
- Fixed glass panels can be installed quickly and easily with rubber seals
- Modular fixed panel option as an "add-on" for the basic hardware
Application Areas
- For design-oriented interior sliding doors for living and office areas
- For all single- and multiple-leaf sliding doors
- Attachment directly to glass
- For attachment on the wall and ceiling (directly and concealed) as well as for glass installation
- Damped on one or both sides with Levolan 120 SoftStop
- Smooth running with Levolan 120 SoftStop makes it particularly well suited for doors in living and office spaces
Technical data
| Levolan 120 glass with fanlight | |
| Leaf material | Glass |
| Leaf weight (max.) | 120 kg |
| Number of leaves | 1-leaf, 2-leaf |
| Leaf width (min.) | 640 mm |
| Leaf width (max.) | 1440 mm |
| Leaf height (max.) | 3500 mm |
| Leaf thickness from | 10 mm |
| Leaf thickness to | 12 mm |
| Track geometry | straight |
| Type of installation | Ceiling, Wall |
Downloads
Levolan 60 sliding door system, installed in a residential building
LABELLING OBLIGATION: © Studio BE / GEZE GmbH

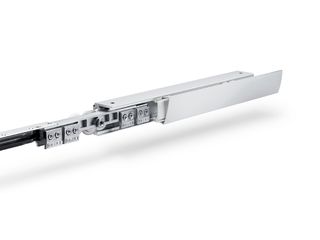

Levolan 120 roller sliding fitting
LABELLING OBLIGATION: © GEZE GmbH
