Axira Electromechanical pivot drive for single leaf doors up to 450 kg
- Concealed drive installation in the lintel area, which blends seamlessly into the door design
- A drive with flexible parameter setting options that can be optimally adapted to individual requirements
- Smart sensors that reliably detect obstacles and enhance security and comfort
- Highly adaptable, allowing the system to be easily integrated into various profile systems
Axira is the new automated pivot door drive system for impressive entrance areas in exceptional residential and hospitality architecture. It enables large door dimensions and the automatic opening of even the heaviest doors, setting new standards in safety and comfort – designed for entrances that are meant to be more than just access points and make architecture tangible from the very first moment.
Application Areas
- Single leaf right and left pivot single-action doors
- Pivot doors up to 2400 mm leaf width or 450 kg weight
- Transom installation
- High-end private housing / luxury villas
- Premium hotels & flagship stores
- Cultural institutions & museums

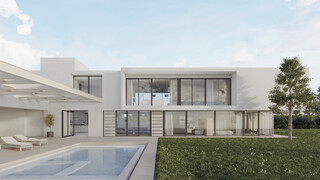

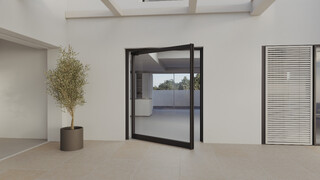

Installation situations in reference objects and videos
© The Apic / GEZE GmbH
© The Apic / GEZE GmbH
Axira - Excellence in motion. Drive system for pivot doors by GEZE.
Pivot doors embody architectural freedom, individuality and prestigious design. They enable the use of large and heavy door formats that are not only functional but also aesthetically impressive. With Axira, GEZE is setting a new standard in this category. This innovative drive system unites exceptional power with a compact design.
Technical data
| Axira | |
| Height | 75 mm |
| Width | 276 mm |
| Leaf weight (max.) 1-leaf | 450 kg |
| Leaf width (min.-max.) | 1000 mm - 2400 mm |
| Drive type | Electromechanical |
| Opening angle (max.) | 90 ° |
| Electrical latching action | Yes |
| Activation delay (max.) | 10 s |
| Operating voltage | 230 V |
| Power rating | 200 W |
| Power supply for external consumers (24 V DC) | 1200 mA |
| Service temperature | -15 - 50 °C |
| IP rating | IP65 |
| Mode of operation | Automatic, Off |
| Type of function | Fully automatic |
| Automatic function | Yes |
| Key function | Yes |
| Obstacle detection | Yes |
| Automatic reversing | Yes |
| Operation | Programme switch DPS |
| Parameter setting | Service terminal ST 220 |
| CAN Bus interface optional | Yes |
| Standard conformity | EN 16005 |
