TS 5000 SoftClose

Closer body TS 5000 SoftClose For overhead door closers with guide rail EN 2-6 with individually adjustable closing speed from 0-15° door opening angle

GEZE TS 5000 Closer body Overhead door closer with guide rails for single leaf fire and smoke protection doors
  • Closing force can be variably adjusted from the front
  • Visual closing force display ensures correct setting
  • Closing seed can be adjusted from the front via valve
  • Latching action/smooth latching function can be adjusted from the front via valve
  • Back check can be adjusted from the front via valve
  • Door closer, can be used for right and left hand doors
Show more
  • Minimal installation effort due to low number of individual parts and quick setting
Contact us

Closer body TS 5000 SoftClose

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side

Installation situations in reference objects and videos

TS 5000 SoftClose in action Particularly suitable for noise-sensitive areas: Our TS 5000 SoftClose closes every door gently and safely. It ensures an optimum balance between force and closing speed – both in wind and suction as well as in changing pressure conditions.

TS 5000 SoftClose in action

Particularly suitable for noise-sensitive areas: Our TS 5000 SoftClose closes every door gently and safely. It ensures an optimum balance between force and closing speed – both in wind and suction as well as in changing pressure conditions.

TS 5000 door closer installation video The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.

TS 5000 door closer installation video

The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.

Technical data

Closer body TS 5000 SoftClose
Closing force in accordance with EN 1154 EN 2 - 6
Leaf width (max.) 1400 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Standard conformity EN 1154:1996/A1:2002/AC:2006
Suitability for fire protection doors Yes
Mounting plate with hole pattern in accordance with EN 1154 supplement Yes
Length 287 mm
Width 47 mm
Height 60 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Latching action speed, adjustable Yes
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Safety valve againts overload Yes
Thermo-control valves Yes

Downloads

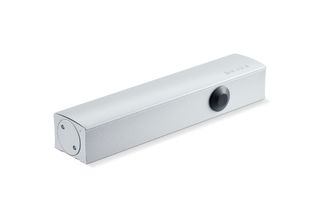

GEZE TS 5000 Closer body

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (675534)
GEZE TS 5000 Closer

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (1802832)

Variants & Accessories

Lintel casing bracket Transom installation opposite hinge side
Material

Lintel casing bracket

For TS 5000/TS 4000

Product details
Glass clamping shoe door closer
Material

Glass clamping shoe

For TS 5000/TS 4000

Product details
Mounting plate Door closer
Material

Mounting plate door closer

For TS 5000 and TS 4000 with hole pattern in accordance with DIN EN 1154 Supplement 1
