Lock 2-leaf

IQ lock AUT System solution for full panic doors with automated door leaves on both sides

IQ lock AUT
  • Motor-driven unlocking of door on active and passive leaf in less than three seconds
  • Mechanical self-locking brings the bolt into its locked position on the active and passive leaf
  • Unlocking of active leaf by activating passive leaf (full panic function)
  • Divided cross latch prevents the bolt from locking even under side-load
  • Electric sequential control on the active leaf ensures that the door will be locked safely
  • Different modes of operation available for every situation
Show more
  • Integrated feedback contacts on active and passive leaf enable complete door monitoring
  • Choice of sabotage monitoring or cylinder contact on active leaf
  • Locking in accordance with insurance requirements ensured
Contact us

IQ lock AUT

Application Areas

  • Double leaf emergency exit and panic doors (left hand and right hand door)
  • Doors along escape and rescue routes
  • Fire and smoke protection doors (with MST 210 motor lock control, IO 420 extension module and on-site emergency power supply)
  • SHEV air inlet doors
  • Access control systems
  • Can be combined with GEZE automatic swing door systems

Installation situations in reference objects and videos

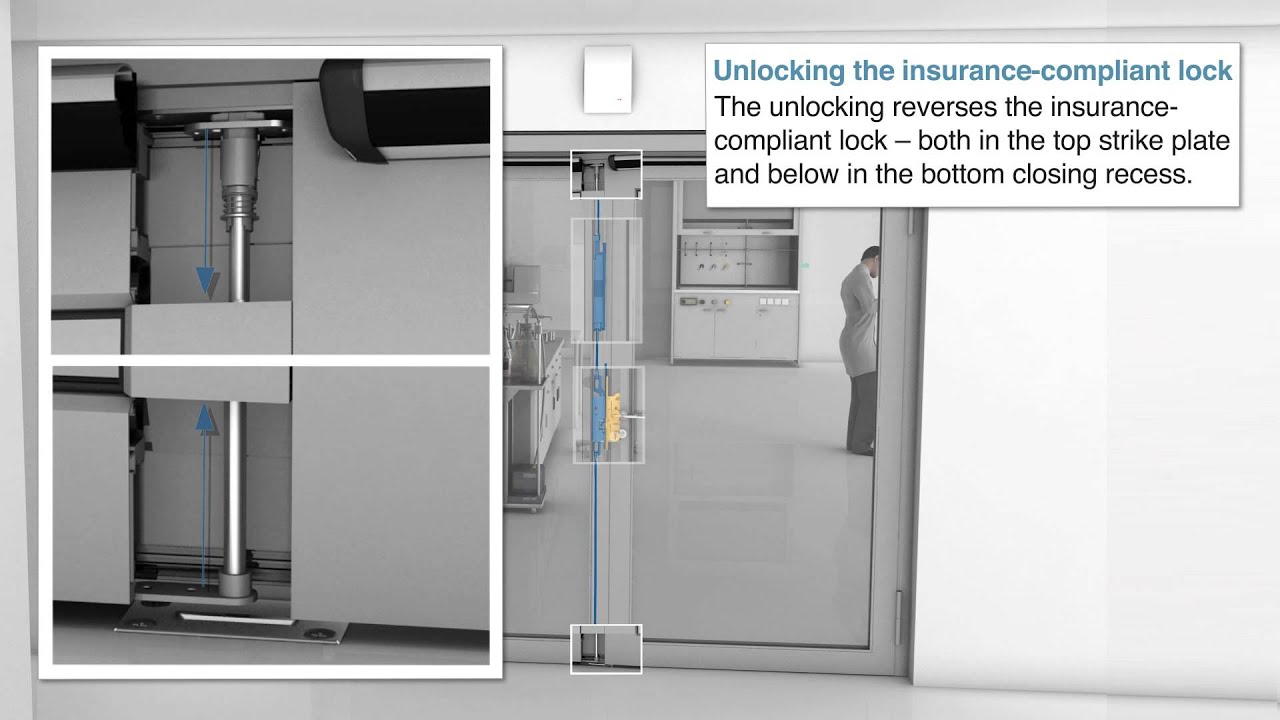

GEZE panic lock IQ lock AUT product video

Lock technology – the passive leaf has been motorised in double leaf doors, offering accessibility for everyone.

Technical data

IQ lock AUT
DIN direction left / right
Service temperature -10 - 50 °C
Panic function / mechanical self-locking Yes
Feedback contacts for lock states Yes
Activation External contact
Current consumption 60 mA at 24 V; max. 1.5 A at 24 V, N/A
Connector cable length 10 m

Downloads

Variants & Accessories

Strike box solid leaf
Accessories

Strike box solid leaf

Mechanical strike box as passive leaf rod locking element on double leaf doors

Product details
GEZE motor lock MST 210
Accessories

MST 210

Motor lock control for IQ lock EL and IQ lock EL DL

Product details
Strike box long
Accessories

Strike box tubular frame doors, long

Mechanical strike box as passive leaf rod locking element on double leaf doors

Product details
