TSA 395 Multi

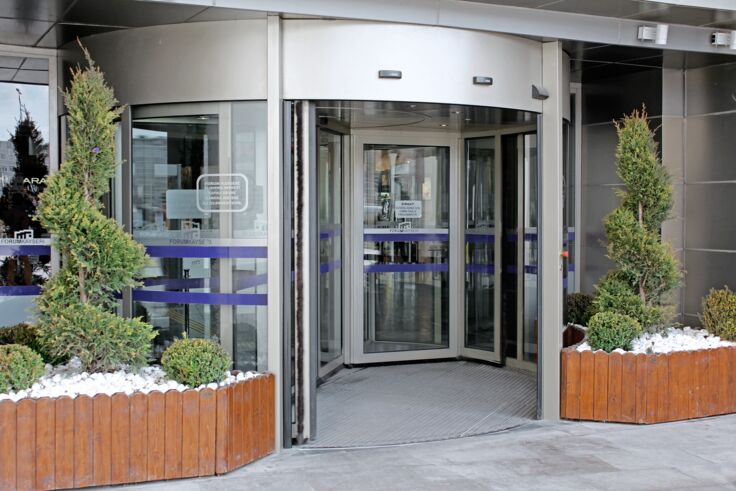

TSA 395 Multi Automatic double leaf revolving door system with integrated sliding door function

  • Variable use of the door system as revolving or sliding door
  • Extensive additional equipment and surfaces
  • Robust and proven drive technology
  • Fast commissioning thanks to pre-cabled and configured sensors
  • Certification in accordance with EN 16005 (pending)
Contact us

Application Areas

  • Double leaf door systems
  • Interior and exterior doors with high access frequency
  • Representative building entrances with large incidence of light
  • Façades with narrow post-rail constructions
  • Diameters from 3600 up to 5400 mm possible

Product specifications

TSA 395 Multi
Manual operation No
With speed limiter (optional) No
With positioning device (optional) No
Fully automatic operation Yes
Servo function No
For escape and rescue routes No
Suitability for escape and rescue routes No
Break-out function (BO) No
Barrier-free No
Inner diameter (min.) 3500 mm
Inner diameter (max.) 5300 mm
For 3-leaf door systems Yes
For 4-leaf door systems Yes
Clear passage height* 2500 mm
Canopy height (min.) 500 mm
Side elements version 8 mm LSG
Version of roof structure optical sheet metal covering, waterproof roof with waterspout
Illumination with roof variant, according to customer wishes
Floor covering Entrance mat, Floor mat according to customer wishes
Hot-air curtain system hot water air curtain, Electric air curtain, installed on top of the suspended ceiling construction
Door handles horizontal or vertical No
Floor ring No
Underfloor operator No
Disabled person's button No
