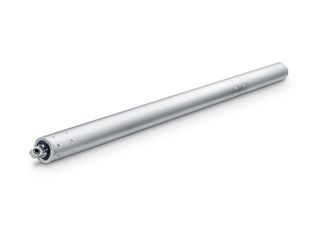

E 3000 Spindle drive for particularly heavy roof windows

  • Very high tensile and compressive force
  • Robust and corrosion-resistant design with built-in end position damping
  • Aluminium housing for the most demanding design requirements
  • Extensive consoles allow versatile mounting on main or secondary closing edges
  • Synchronisation of up to four drives possible
  • Tested in accordance with EN 12101-2 (NRWG)
Contact us

Spindle drive for particularly heavy roof windows

Application Areas

  • Very heavy windows in the roof area
  • Natural ventilation, smoke and heat extraction system (RWA), natural smoke and heat exhaust ventilators (NSHEV)
  • Use in the exhaust air system
  • Synchronisation of up to four drives possible
  • Installation on wooden, plastic or metal windows
  • Frame installation

Product specifications

E 3000
Dimensions (W x H x D) Stroke + 465, Ø 50 mm
Possible stroke heights 300 mm, 500 mm, 750 mm, 1000 mm
Opening speed RWA 7.8 mm/s
Tensile force (max.) 3000 N
Force of pressure (max.) 3000 N
Holding force (max.) 25000 N
Operating voltage 24 V DC
Type of additional locking Locking drive
Type of stroke shortening Factory setting
End position cut-off extended electronic
End position cut-off retracted electronic
Complete opening within 60 s yes, up to 300 mm stroke
SHEV tested yes, up to 300 mm stroke
